Hand-Operated 0.14J to 1J Universal Spring Hammer Test Apparatus IEC62262

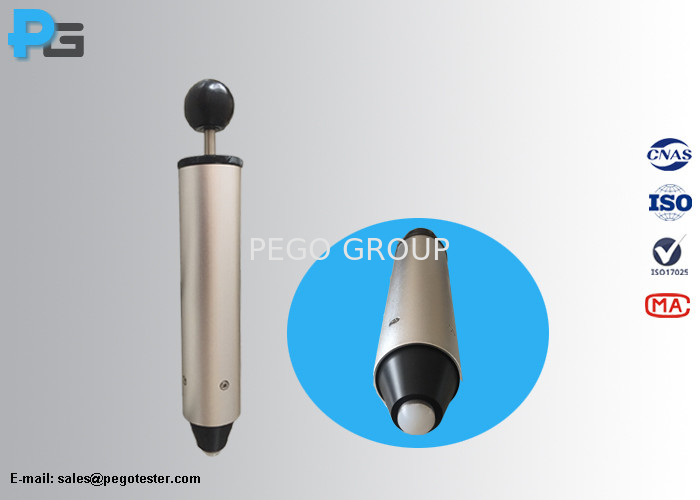

Large Image : Hand-Operated 0.14J to 1J Universal Spring Hammer Test Apparatus IEC62262

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-USH

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	in stock
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Reference Standard:	IEC62262, IEC60068-2-75	Material Of The Striking Element:	Polymide
Material Of Body:	Stainless Steel	Impact Energies:	IK01 (0.14J), IK02 (0.2J), IK03 (0.35J), IK04 (0.5J), IK05 (0.7J) And IK06 (1J)
Release Force:	＜10N	Shipment:	By DHL Or Fedex
Highlight:	Universal Spring Hammer Test Apparatus , IEC62262 Spring Hammer Test Apparatus

0.14J to 1J Universal Spring Hammer Test Apparatus

1. Introduction

The universal spring hammer test apparatus is adjustable to peform IK01 (0.14J), IK02 (0.2J), IK03 (0.35J), IK04 (0.5J), IK05 (0.7J) and IK06 (1J) tests. It can meet the test requirements of IEC62262 and IEC60068-2-75. The spring hammer consists of the body, the striking element and the release system. The striking element for severities not exceeding 1J is made of polymide, and has a mass of 250g. The pressure to release the striking element shall not exceed 10N. The spring hammer can be used in any position. Spring hammer is used to assess the strength of the accessories of household appliances and electronic and electrical products against to mechanical impact.

2. Parameter

Model	PG-SH07	PG-USH
Impact energy	2J	0.14, 0.2, 0.35, 0.5, 0.7, 1J
Test IK level	IK07	IK01 to IK06
Error	±5%	±10%
Equivalent mass	500g±5g	250g±5g
Radius of hammer	R25mm	R10mm
Weight	1250g	1250g
Trigger force	＜10N	＜10N
Material of hammer	steel	Polyamide
Material of body	Stainless steel	Stainless steel

3. Frequently asked questions

1). Does the spring hammer come with a protective case?

Pego: Yes, the spring hammer will come with a protective case.

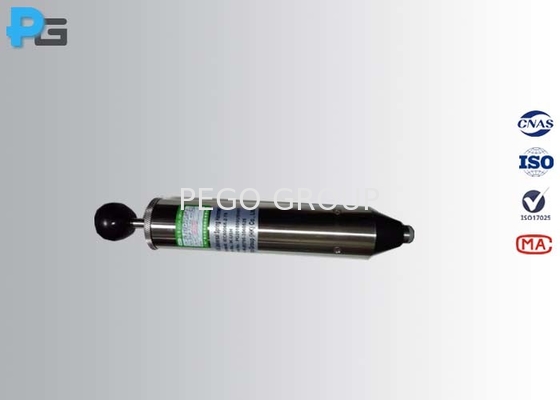

Hand-Operated 0.14J to 1J Universal Spring Hammer Test Apparatus IEC62262 0

2). Does the spring hammer come with calibration certificate?

Pego: The spring hammer can come with calibration certificate issued by an ISO17025 authorized lab, but the calibration certificate will charged additionally.
