IK07 (2J) to IK11 (50J) Vertical Hammer Mechanical Impact Test Apparatus IEC62262

IK07 (2J) to IK11 (50J) Vertical Hammer Mechanical Impact Test Apparatus IEC62262​

1. Introduction

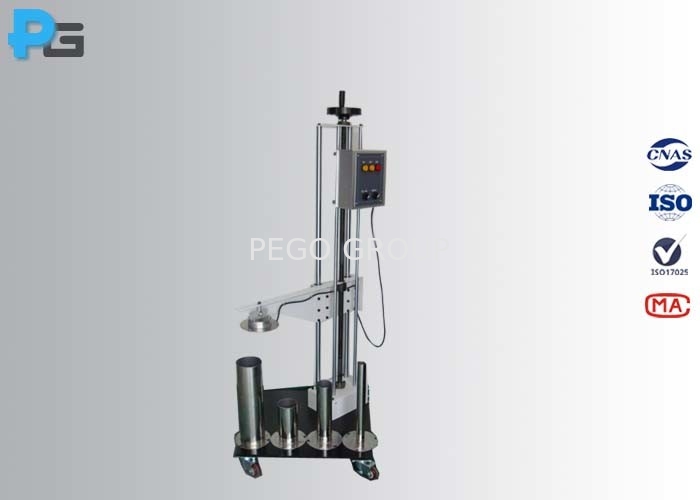

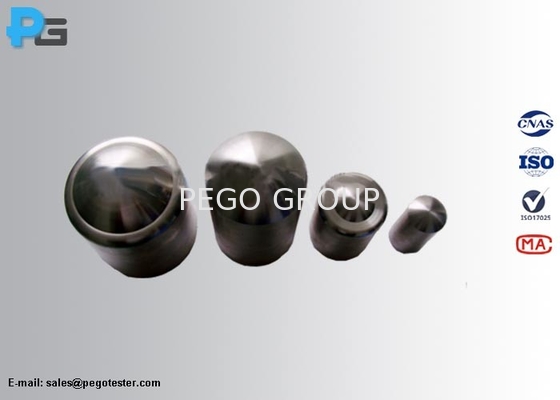

The vertical hammer mechanical impact test apparatus can meet the test requirements of IEC60068-2-75 test Ehc and IEC62262. The equipment consists of striking elements, swing pipes and test rig. The striking elements for IK07 (2J) to IK11 (50J) is made of steel, the equivalent mass of the hammer is equal to the actual mass of the striking element. The fall of the striking element shall be along a guideway. The guideway shall not rest on the specimen and the striking element shall be free of the guideway on the striking the specimen. The test rig is made of aluminum alloy, with four wheels at the bottom, and the whole device can move freely.

Vertical hammer can be applied to the cases that the impact points are on accessible horizontal surfaces. The travel height can be customized as per the specimen.

2. Parameter

3. Frequently asked questions

1). Will you provide installation service?

Pego: the equipment will not need installation service, we will ship the equipnent as a whole.

2). What is warranty period of your device?

Pego: the warrany period is 12 months upon buyer receipt of the goods.

3). Can the device come with calibration certificate?

Pego: Yes, user can request the calibration certificate issued by an ISO17025 authorized lab, but the cost of the calibration certificate will be charged additionally.
