IEC 60529 Water Jetproof Testing Equipment for IPX5 and IPX6 Testing
1. Introduction
IPX5 and IPX6 Jet Nozzles Water Jetproof Testing Equipment designed according to IEC60529 clause 14.2.5 and 14.2.6. The jet nozzles also be called as hose nozzles. Waterproof test simulates the condition of water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.

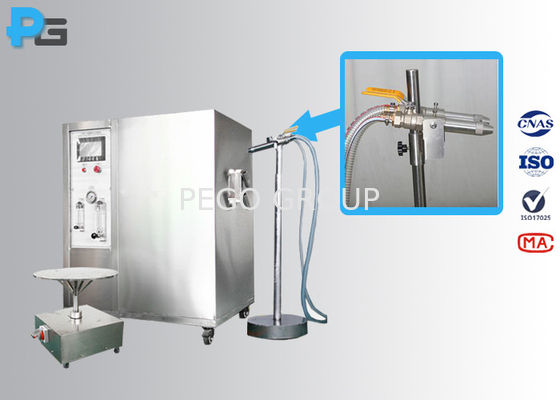

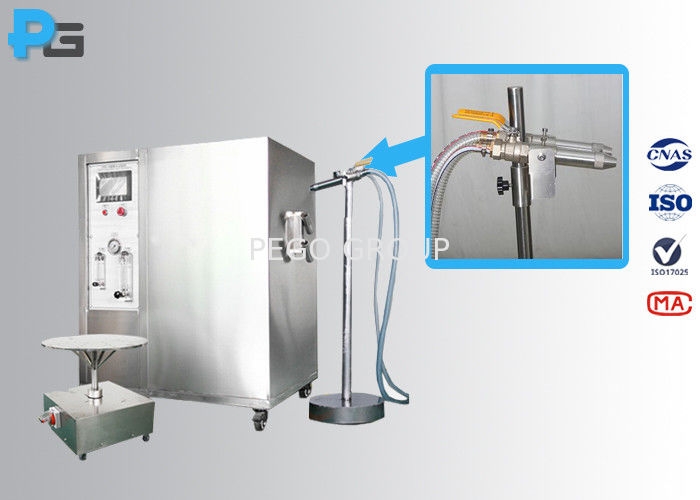

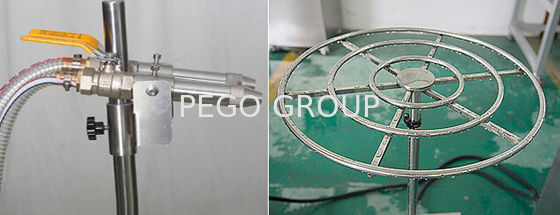

This is a open-type equipment, which has no size and weight limit to the device under test. The equipment is consisted by control box, turntable, jet nozzles (diameter 6.3mm and 12.5mm) and nozzle holder. A 550L water tank is built in control box. The test distance is controlled by manual.
Jet hose nozzle with internal diameter of 6.3mm is for IPX5 jet-proof testing, the water flow rate is 12.5L/min, and test time is 1min/m2 and at lest 3 min. The test distance is 2.5m to 3m .
Jet hose nozzle with internal diameter of 12.5mm is for IPX6 strong jet-proof testing, the water flow rate is 100L/min, and test time is 1min/m2 and at lest 3 min. The test distance is 2.5m to 3m.
2. Specification
| Model |
IPX56A |
| Control system |
7 inch touch screen+Panasonic PLC |
| Outer size |
1100mm*900mm*1300mm (L*W*H, control box)
600mm*600mm*800mm (L*W*H, turntable)
|
| Water tank |
550L, 800*600*1145 (mm), made by SUS304 stainless steel |
| Aperture diameter of IPX5 nozzle |
6.3mm |
| Aperture diameter of IPX6 nozzle |
12.5mm |
| Delivery rate for IPX5 (L/min) |
12.5±0.625 |
| Delivery rate for IPX6 (L/min) |
100±5 |
| Water pressure (Mpa) |
As per the standard requirement |
| Flowmeter control |
Manual control |
| Distance from specimen |
2.5~3m (manual control) |
| Nozzle fixed way |
Hand-held |
| Diameter of turntable |
Φ600mm |
| Power of turntable |
AC220V |
| Material |
SUS304 stainless steel |
| Protection |
Electric leakage, hydropenia, short circuit |
| Working power |
AC 380V/ 50Hz, 3KW (3 phase 4 wire + protective ground wire) |
| Working conditions |
5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure) |
| Water source |
1). The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet.
2). The faucet is not more than 2 meters away from the equipment
|
| Requirement for the site |
The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set |
| Requirement for power switch |
1). The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and this switch must be independent for the use of the equipment
2). It is forbidden to use knife switches or power sockets
3). The leakage protection air switch is not more than 2 meters away from the equipment
|
3. Frequently Asked Questions
1). Can we customize the bearing capacity of the turntable?
Pego: Yes, the regular turntable can bear the samples with a weight less than 50KG, but we support the customize service.
3). What kind of water can be used?
Pego: Fresh water, however, the test water may be different depending on the product standards and test purposes.The purity water is recommended on prior, this will reduce the risk of nozzle clogging. But in practice, the tap water is used at most, the equipment configures 2 water filter.
4). Can the water recycled?
Pego: No, this is an open type equipment, the water cannot be recyled. But we have the chamber type equipment for option.
6). Will you provide the on-site installation service?
Pego: Actually, the equipment will no need on-site installation service. The equipment will be shipped almost as a whole, user just need to make simple wiring connection when receive the goods.
7). What is the warranty period? and how can we get the after-sales service?
Pego: The warranty period is 12 months upon user receive the goods. 95% of after-sales problems can be solved by our engineer team through remote service. Customers will get a response within 24 hours in business day after reporting the problem. In our experience, most of the troublesome can be removed with the guidance of our engineer, only a small part of the troublesome are caused by parts failure, that is because we use the branded components, which have better performance and good reliability. If the parts damaged, we will a send a new for replace, the new parts will be charged for free within the warranty period. And also our eigneer team will teach how to replace the damaged parts.
