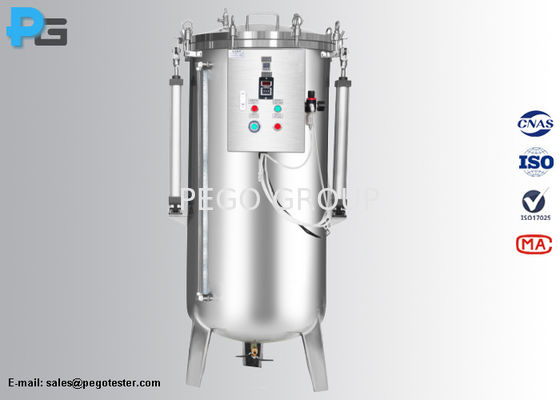

High Pressure Water Tank Simulating 0-50m Water Depth for IPX8 Testing

High Pressure Water Tank Simulating 0-50m Water Depth for IPX8 Testing
High Pressure Water Tank Simulating 0-50m Water Depth for IPX8 Testing High Pressure Water Tank Simulating 0-50m Water Depth for IPX8 Testing

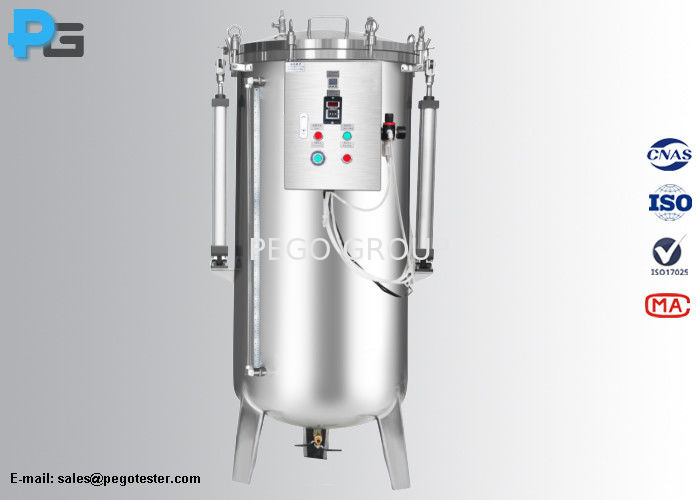

Large Image :  High Pressure Water Tank Simulating 0-50m Water Depth for IPX8 Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: IPX8A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 20 business days
Payment Terms: T/T, PayPal
Detailed Product Description
Related Standard: IEC60529 Test IP Grade: IPX8
Simulate Water Depth: 0-30m, 0-50m Dimension Of Water Tank: Depends
Material: SUS304 Stainless Steel Working Power: 220V/50Hz, 100W
Highlight:

IPX8 Water Tank

,

High Pressure Water Tank

,

50m Water Depth Water Tank

IPX8 High Pressure Water Tank



1. Introduction

IPX8 high pressure water tank is designed according to IEC60529-2001 regarding the second characteristic numerals 8 for continuous immersion test. Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect. IPX8 test is subject to the agreement between user and manufacturer, the test simulates the condition under 0 to 50m below the water.



IPX8 high pressure water tank: The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. Test duration: continuous immersion in water, depth specified by manufacturer, generally up to 3 m.



2. Specification

Tank outer size 775 *850*1750mm (L*W*H)
Tank inner size φ600*1200mm (Diameter*H)
Wall thickness 4mm
Tank material SUS304 stainless steel
Flange thickness 25mm
Flange material stainless steel
Weight: About 150KG

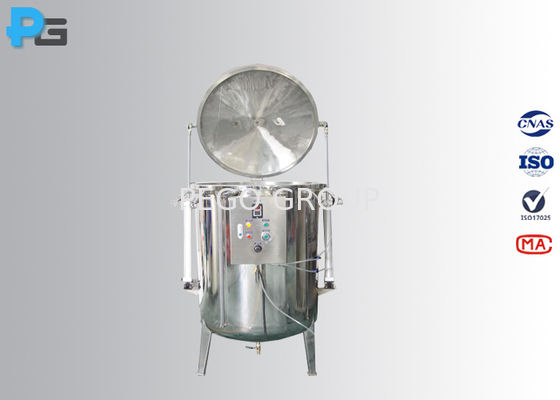

Open mode Cylinder lifting
Pressure control mode auto adjustment
Pressure sensor error ±0.002 Mpa
Pressure sensor accuracy 0.001Mpa
Water depth range 0~50m
Pressure adjustment range 0.00~0.5Mpa
Safety valve discharge pressure 0.55Mpa
Max pressure 0.6Mpa
Test time 0~999min
Protection device pressure safety valve protection, leakage protection
Air intake adjustment Manual adjust the pressure valve.
Working power 220V/50Hz, 100W
Working condition 5℃-35℃ (RT.), ≤85% (RH.), 86kPa~106kPa (pressure)
Water source Tap water or pure water
Air source User-supplied air compressor, suggest output pressure: 0.6Mpa-0.8Mpa
Accessories Auxiliary steel rod, water pipe (5m), air inlet pipe*1



 3. Frequently Asked Questions

1). What kind of water can be used?

Pego: Fresh water, however, the test water may be different depending on the product standards and test purposes.The purity water is recommended on prior, this will reduce the risk of nozzle clogging. But in practice, the tap water is used at most, the equipment configures 2 water filter.



2). Where is the inlet and outlet?

Pego: The inlet and outlet is at the bottom of the tank.

 High Pressure Water Tank Simulating 0-50m Water Depth for IPX8 Testing 0



3). Will you provide the on-site installation service?

Pego: Actually, the equipment will no need on-site installation service. The equipment will be shipped almost as a whole, user just need to make simple wiring connection when receive the goods.



4). What is the warranty period? and how can we get the after-sales service?

Pego: The warranty period is 12 months upon user receive the goods. 95% of after-sales problems can be solved by our engineer team through remote service. Customers will get a response within 24 hours in business day after reporting the problem. In our experience, most of the troublesome can be removed with the guidance of our engineer, only a small part of the troublesome are caused by parts failure, that is because we use the branded components, which have better performance and good reliability. If the parts damaged, we will a send a new for replace, the new parts will be charged for free within the warranty period. And also our eigneer team will teach how to replace the damaged parts.
