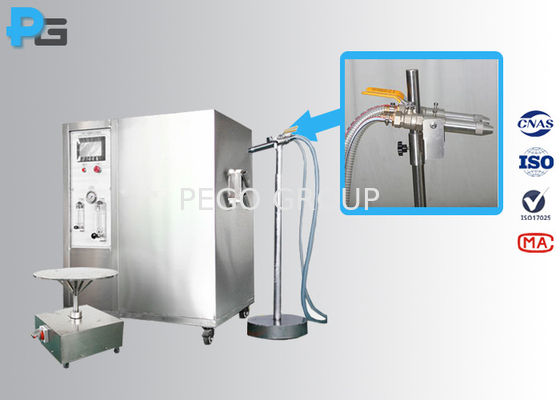

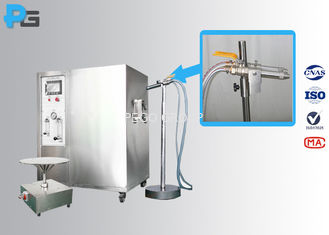

IPX5 and IPX6 Jet Nozzle Ingress Protection Testing Machine for IPX5 and IPX6 Testing Standards

Large Image : IPX5 and IPX6 Jet Nozzle Ingress Protection Testing Machine for IPX5 and IPX6 Testing Standards

Product Details:

Place of Origin:	China
Brand Name:	PEGO
Certification:	Third-Lab Calibration Certificate
Model Number:	IPX56A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD5000~USD8000
Packaging Details:	woodencase
Delivery Time:	30 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Standard:	IEC60529	Nozzle Diameter:	6.3mm And 12.5mm
IP Code:	IPX5 And IPX6	Warranty:	12 Months
Condition:	New	Application:	For IPX5 And IPX6 Testing
Highlight:	Jet Nozzle Ingress Protection Testing Machine , IPX5 Ingress Protection Testing Machine , IPX6 Ingress Protection Testing Machine

IEC60529 Clause 14.2.5 and 14.2.6 Figure 4 IPX5 and IPX6 Jet Nozzle Ingress Protection Testing Machine

1. Introduction

The IPX5 and IPX6 jet nozzle ingress protection testing machine is designed and manufactured according to IEC60529, IEC60598-1, GB4208, and GB7000.1 standards. It is suitable for water spray and violent water spray level waterproof testing of outdoor electrical and electronic products and lighting product shells. It is suitable for certification and testing agencies and manufacturers to conduct waterproof inspections on products. This equipment uses PLC control, color touch screen display, control, and setting of test procedures, so that users can easily and simply reach the test conditions. The equipment is equipped with a precision glass rotor flowmeter, and the data is manually adjusted by the flowmeter to reach the value specified in the standard.

2. Standard

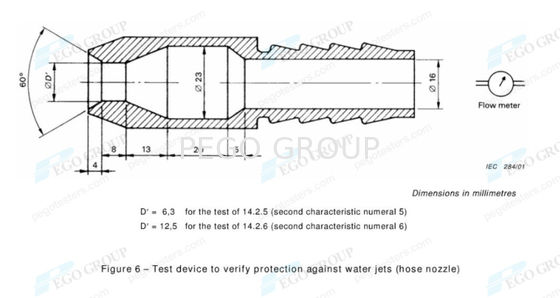

IEC60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.5 and 14.2.6 Figure 6

IEC60598-1 Luminaires - Part 1: General requirements and tests

3. Parameters

Model	IPX56A
Control system	7 inch touch screen+Panasonic PLC
Outer size	1100mm900mm1300mm (LWH, control box) 600mm600mm800mm (LWH, turntable)
Water tank	550L, 8006001145 (mm), made by SUS304 stainless steel
Aperture diameter of IPX5 nozzle	6.3mm
Aperture diameter of IPX6 nozzle	12.5mm
Delivery rate for IPX5 (L/min)	12.5±0.625
Delivery rate for IPX6 (L/min)	100±5
Water pressure (Mpa)	As per the standard requirement
Flowmeter control	Manual control
Distance from specimen	2.5~3m (manual control)
Nozzle fixed way	Hand-held
Diameter of turntable	Φ600mm
Power of turntable	AC220V
Material	SUS304 stainless steel
Protection	Electric leakage, hydropenia, short circuit
Working power	AC 380V/ 50Hz, 3KW (3 phase 4 wire + protective ground wire)
Working conditions	5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure)
Water source	1). The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2). The faucet is not more than 2 meters away from the equipment
Requirement for the site	The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set
Requirement for power switch	1). The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and this switch must be independent for the use of the equipment 2). It is forbidden to use knife switches or power sockets 3). The leakage protection air switch is not more than 2 meters away from the equipment

4. Figure:
