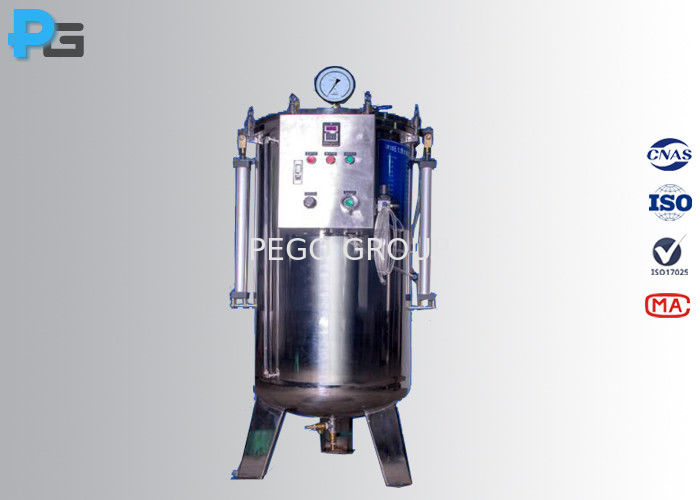

IPX8 Immersion Tank Ingress Protection Testing Machine with SUS304 Stainless Steel Customized Tank

Large Image : IPX8 Immersion Tank Ingress Protection Testing Machine with SUS304 Stainless Steel Customized Tank

Product Details:

Place of Origin:	China
Brand Name:	PEGO Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-IPX8-50A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	woodencase
Delivery Time:	20-30 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Standard Conforms To:	IEC60529	Test IP Level:	IPX7, IPX8
Material:	SUS304 Stainless Steel	Working Power:	AC220V/50Hz Or Customized
Test Water:	Pure Water Or Tap Water	Test Water Depth:	0-30m, 0-50m Or Customized
Tank Size:	Customized As Per The DUT	Control Mode:	Auto Pressure Sensor
Highlight:	Customized Ingress Protection Testing Machine , Immersion Tank Ingress Protection Testing Machine , SUS304 Tank Ingress Protection Testing Machine

IEC60529 Clause 14.2.8 IPX8 Immersion Tank Ingress Protection Testing Machine

1. Introduction

The IPX8 Immersion Tank Ingress Protection Testing Machine is designed and manufactured according to IEC60529, IEC60598-1 Section 9.2.9, and is suitable for waterproof testing of outdoor electrical and electronic products and lighting products under water, and for waterproof testing of products by certification and testing agencies and manufacturers. The IPX8 immersion tank tester mainly uses a high-pressure stainless steel water tank, and simulates the underwater pressure through external pressurization to meet the test requirements.

2. Standard

IEC60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.8

IEC60598-1 Luminaires - Part 1: General requirements and tests

3. Parameters

Tank outer size	775 8501750mm (LWH)
Tank inner size	φ6001200mm (DiameterH)
Wall thickness	4mm
Tank material	SUS304 stainless steel
Flange thickness	25mm
Flange material	stainless steel
Weight:	About 150KG
Open mode	Cylinder lifting
Pressure control mode	auto adjustment
Pressure sensor error	±0.002 Mpa
Pressure sensor accuracy	0.001Mpa
Water depth range	0~50m
Pressure adjustment range	0.00~0.5Mpa
Safety valve discharge pressure	0.55Mpa
Max pressure	0.6Mpa
Test time	0~999min
Protection device	pressure safety valve protection, leakage protection
Air intake adjustment	Manual adjust the pressure valve.
Working power	220V/50Hz, 100W
Working condition	5℃-35℃ (RT.), ≤85% (RH.), 86kPa~106kPa (pressure)
Water source	Tap water or pure water
Air source	User-supplied air compressor, suggest output pressure: 0.6Mpa-0.8Mpa
Accessories	Auxiliary steel rod, water pipe (5m), air inlet pipe*1

4. Figure
