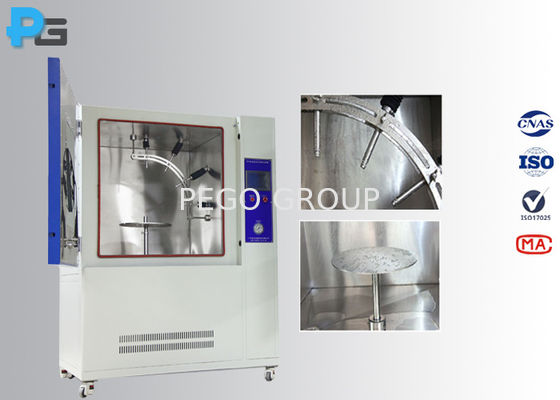

IEC60529 Clause 14.2.9 Figure 10 IPX9K High Pressure and Temperature Water Jetting Ingress Protection Testing Machine

Large Image : IEC60529 Clause 14.2.9 Figure 10 IPX9K High Pressure and Temperature Water Jetting Ingress Protection Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	PEGO GROUP
Certification:	Third-Lab Calibration Certificate
Model Number:	IPX9K

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD15000~USD25000
Packaging Details:	woodencase
Delivery Time:	30 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Standard:

ISO20653

Material:

Stainless Steel

Working Power:

380V/50Hz

Working Dimension:

1000*1000*1000mm (or Customized)

Highlight:

IPX9K Ingress Protection Testing Machine

High Pressure Ingress Protection Testing Machine

IEC60529 Clause 14.2.9 Figure 10 IPX9K High Pressure and Temperature Water Jetting Ingress Protection Testing Machine

1. Introduction

The IPX9K Ingress Protection Testing Machine, named as IPX9K High Pressure and Temperature Water Jetting Tester, is designed and manufactured according to IEC60529 clause 14.2.9 figure 7, 8, 9 and 10, GB4208, DIN40050-9 and ISO20653 standard. The main function of the ipx9k ingress protection testing machine is to test the performance of products during storage, transportation and use in a rainy climate environment. This equipment is mainly used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components to test the physical and other related properties of products under climatic conditions simulating rain. After the test, the performance of the product is judged by verification to determine whether it meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.

2. Standard

IEC60529 Degrees of protection provided by enclosures (IP Code) Figure 3

ISO20653 Road Vehicles - Degrees of protection (IP-Code) - Protection of electrical equipment against foreign objects, water and access

DIN40050-9 Road Vehicles - Degrees of protection (IP-Code) - Protection of electrical equipment against foreign objects, water and access

3. Parameters

Model	IPX9K
Inner size	L1200D1200H1200mm (depends on the specimen)
External size	L1600D1380H2150mm
Test time	30S for each position
Jet angle	0°, 30°, 60°, 90°
Nozzle distance	100-200mm (manual adjustable)
Numbers of jet	4
Diameter of turntable	400mm
Lifting mode of turntable	Manual adjustable (adjust height: 420~660mm)
Spray distance	100-200mm (manual control)
Water pressure	8000-10000Kpa
Water flow	14～16L / min
Water tank	50L (recyclable)
Temperature	25⁰C (room temperature), 80±5℃
Distribution impact force	0.9~1.2N (water jet impact force calibration system)
Test time	120s (30s/position)
Rotational speed of turntable	1～10r/min(adjustable)
Bear weight of turntable	50kg
Protection device	Leakage, water break, short circuit
Working Power(V)	380V/50Hz (3 phase 4 wire + protective ground wire)
Sample Power (V)	220V/50Hz
Power(KW)	18
Operation Language	English/Chinese Switchable
Safety protection function	Leakage protection, water shortage protection, short circuit protection, phase sequence protection, over-heat protection
Working condition	5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure)
Water source	1). The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2). The faucet is not more than 2 meters away from the equipment
Requirement for the site	The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set
Requirement for power switch	1). The user is required to configure the leakage protection air switch of the corresponding capacity for the equipment at the installation site, and this switch must be independent for the use of the equipment 2). It is forbidden to use knife switches or power sockets 3). The leakage protection air switch is not more than 2 meters away from the equipment

4. Figures

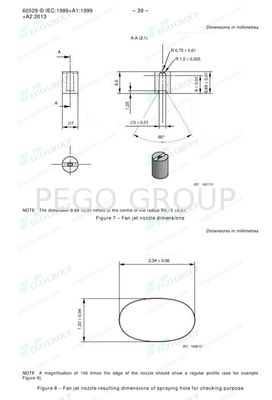

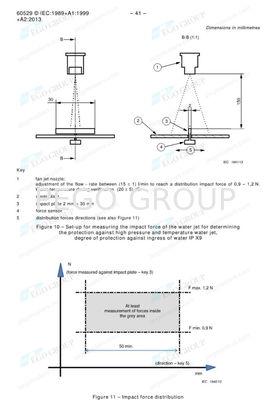

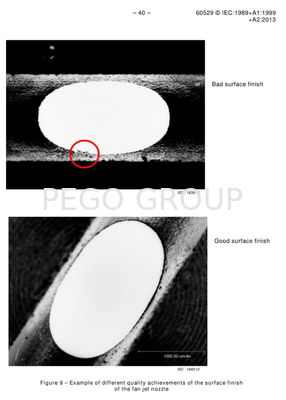

IEC60529 Clause 14.2.9 Figure 10 IPX9K High Pressure and Temperature Water Jetting Ingress Protection Testing Machine 0
