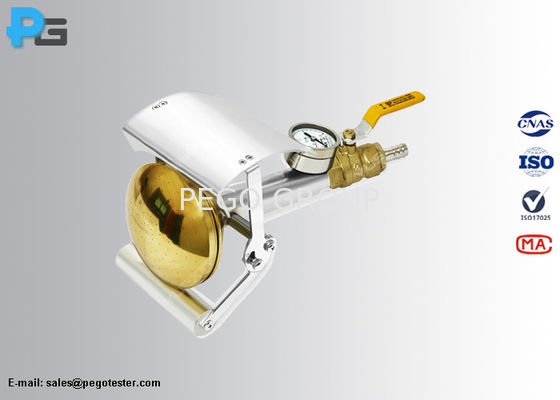

Hole Diameter 0.5mm Aluminum Baffle IPX3/IPX4 Ingress Protection Testing Hand-Held Spray Nozzle IEC60529 Clause 14.2.3/14.2.4

Large Image : Hole Diameter 0.5mm Aluminum Baffle IPX3/IPX4 Ingress Protection Testing Hand-Held Spray Nozzle IEC60529 Clause 14.2.3/14.2.4

Product Details:

Place of Origin:	China
Brand Name:	PEGO
Certification:	Third-Lab Calibration Certificate
Model Number:	IPX34S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD700~USD900
Packaging Details:	carton
Delivery Time:	15 working days
Payment Terms:	T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Standard:	IEC60529	Material:	Brass Sprinkler Head, Aluminum Baffle
Hole Diameter:	0.5mm	Hole Quantity:	121
Flow:	10L/min±5%	Warranty:	12 Months
Highlight:	0.5mm Hand-Held Spray Nozzle , IEC60529 Hand-Held Spray Nozzle , IPX3/IPX4 Hand-Held Spray Nozzle

IEC60529 Clause 14.2.3 and Clause 14.2.4 IPX3 and IPX4 Ingress Protection Testing Hand-Held Spray Nozzle

1. Introduction

The IPX3 and IPX4 Ingress Protecting Tester, named as IPX3 and IPX4 Hand-held Spray Nozzle, is designed and manufactured according to IEC60529, IEC60598-1, GB4208, GB7000.1, GB17761 standards. It is suitable for waterproof testing of outdoor electrical and electronic products in terms of rain and water spray, and for waterproof testing of products by certification and testing agencies and manufacturers. The shower is mainly composed of a brass nozzle, a movable water baffle, a counterweight, a pressure gauge and a stainless steel valve. The back-end water supply system is not covered by this specification.

2. Standard

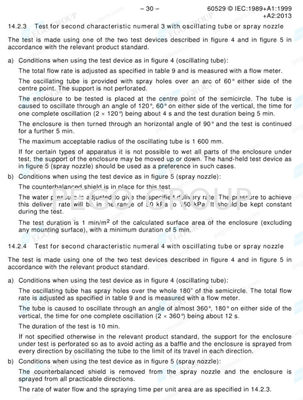

IEC60529 Degrees of protection provided by enclosures (IP Code) Figure 3

IEC60598-1 Luminaires - Part 1: General requirements and tests

ISO20653 Road Vehicles - Degrees of protection (IP-Code) - Protection of electrical equipment against foreign objects, water and access

3. Parameters

Number of holes	121
Holes position	1 hole at center 2 inner circles of 12 holes at 30⁰ pitch 4 outer circles of 24 holes at 15⁰pitch
Hole diameter	Φ0.5mm
Spray nozzle diameter	102mm
Delivery rate	10L/min±5% (manual adjustment)
Water pressure	50kPa to 150kPa
Material	spray nozzle(brass) Moving shield (aluminum) Hose (stainless steel)

4. Figure
