IEC60529 Clause 14.2.3 and Clause 14.2.4 Figure 5 IPX3 and IPX4 Ingress Protection Testing Spray Nozzle Waterproof Tester

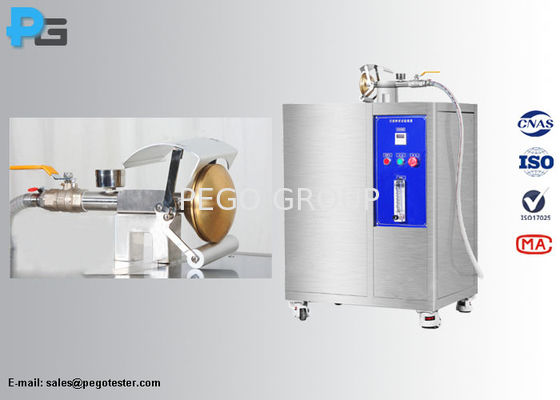

Large Image : IEC60529 Clause 14.2.3 and Clause 14.2.4 Figure 5 IPX3 and IPX4 Ingress Protection Testing Spray Nozzle Waterproof Tester

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	IPX34AS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	woodencase
Delivery Time:	20 business days
Payment Terms:	T/T,PayPal

Contact Now

Detailed Product Description

Reference Standard:	IEC60529, IEC61851, IEC62196-1	Configuration:	Spray Nozzle, Control Chamber
Material Of Nozzle:	Brass	Application:	For Testing Household Appliance, Luminaire, Auto Parts And Charging Station
Working Power:	220V/50Hz
Highlight:	IEC60529 Waterproof Tester , IPX3 Waterproof Tester , IPX4 Waterproof Tester

IEC60529 Clause 14.2.3 and Clause 14.2.4 Figure 5 IPX3 and IPX4 Ingress Protection Testing Spray Nozzle Waterproof Tester

1. Introduction

The ipx34 spray nozzle waterproof tester is designed and manufactured according to IEC60529 clause 14.2.3 and clause 14.2.45 figure 5, IEC60598-1, GB4208, GB7000.1, GB17761 standards. It is suitable for waterproof testing of outdoor electrical and electronic products in terms of rain and water spray, and for waterproof testing of products by certification and testing agencies and manufacturers. The shower is mainly composed of a brass nozzle, a movable water baffle, a counterweight, a pressure gauge and a stainless steel valve. The equipment is consisted by spray nozzle, water tank and control box.

2. Standard

IEC60529 Degrees of protection provided by enclosures (IP Code) Figure 5

IEC60598-1 Luminaires - Part 1: General requirements and tests

ISO20653 Road Vehicles - Degrees of protection (IP-Code) - Protection of electrical equipment against foreign objects, water and access

3. Parameters

Model	IPX34AS
Outer size (LWH)	870mm600mm950mm (control box) 370mm115mm165mm (spray nozzle)
Spray nozzle diameter	102mm
Number of holes	121
Hole diameter	Φ0.5mm
Holes position	1 hole at center 2 inner circles of 12 holes at 30⁰ pitch 4 outer circles of 24 holes at 15⁰pitch
Outer diameter of water inlet	Φ16mm
Outer diameter of water pipe	Φ28mm
Flow rate	10L/min±5%
Flowmeter adjustment method	Manual adjustment
Water pressure range	50-150Kpa
Flowmeter display	Glass flow meter
Capacity of water tank	150L
Working power	220V/50Hz
Water source	1. The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2. The faucet is not more than 2 meters away from the equipment
Requirement for the site	The ground is level, the drainage is unobstructed, the ground and walls are waterproofed, and the floor drain or drainage ditch is set

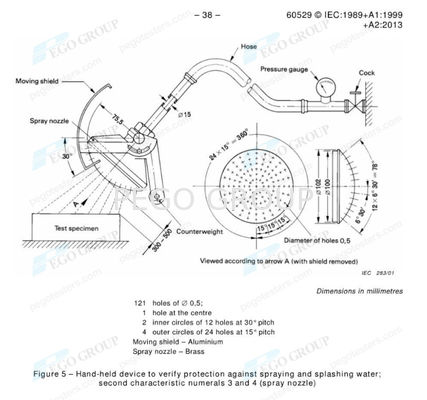

4. Figure:
