Detailed Product Description
Standard: IEC60068-2-78, IEC60884-1 Impact Enegery: 0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J
Application: For Testing Socket-outlet, Switch, Mounting Box And Etc. Release Mode: Manual Release
Name: Hammer Test Apparatus Type: For Socket Outlet Switches
Highlight:

IK06 Pendulum Impact Testing Machine

,

IK01 Pendulum Impact Testing Machine

,

Socket-Outlet Pendulum Impact Testing Machine

IEC60068-2-75 Appendix D IK01 to IK06 Pendulum Impact Testing Machine

1. Introduction

The pendulum impact testing machine is designed and manufactured according to the requirements of Appendix D and Figure D.1, Figure D.2, Figure D.3, Figure D.4, Figure D.5 of standard IEC60068-2-75, clause 24.2 and Figure 26 of IEC60884-1, clause 20.1.3 of BS1363-2, clause 20.1.4 of BS1363-3, clause 20.1.3 and Figure 21 of BS1363-4, clause 24.1 of VDE0620-1 and Figure 22, Figure 23, Figure 24, Figure 25 and Figure 26. It is suitable for the impact strength test of the shell of electrical and electronic products and lighting products. The pendulum test device drives the pendulum to a certain height through the hollow pendulum rod to generate potential energy, and the swing and fall generate impact energy to quantitatively provide energy to detect the shell strength. It mainly includes a bracket seat, a sample mounting seat, a pendulum kit, a pendulum shaft, a height positioning device, etc.



2. Standard

IEC60068-2-75 Environmental testing–Part 2-75: Tests – Test Eh: Hammer tests

IEC60884-1 Plugs and socket-outlets for household and similar purposes –Part 1: General requirements clause 24.2 and figure 26

BS1363-2 13 A plugs, socket-outlets, adaptors and connection units Part 2: Specification for 13 A switched and unswitched socket-outlets clause 20.1.3 and figure 21

BS1363-3 13 A plugs, socket-outlets, adaptors and connection units Part 3: Specification for adaptors Clause 20.1.4 and figure 21

BS1363-4 13 A plugs, socket-outlets, adaptors and connection units Part 4: Specification for 13 A fused connection units switched and unswitched Clause 20.1.3 and Figure 21

VDE0620-1 Plugs and socket-outlets for household and similar purposes –Part 1: General requirements on fixed socket-outless Clause 24.1figure 22, figure 23, figure 24, figure 25, figure 26



3. Parameters

Swing rod

Material: steel tube

Size: 9mm (outer diameter)*0.5mm (wall thickness)*1000mm (length)

Mounting fixture

Weight: 10±1KG

Structure: X and Y axis can be adjustable, and can rotate ±90° around the rotation axis of mounting plate

Height of fall

0-500mm, scale display

Plywood

Size: 8mm (thickness)*175mm (L)*175mm (W)

Striking element

Combined mass:  200 g (150 g) ± 1 g   equivalent mass: 250g(200g)± 2%

Material: polyamide


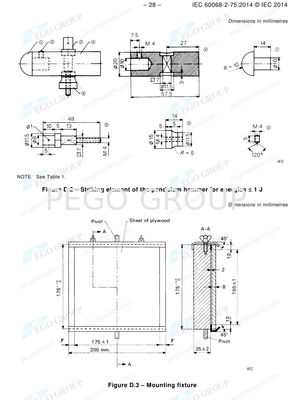

4. Figures

 IEC60068-2-75 Appendix D IK01 to IK06 Pendulum Impact Testing Machine for Testing Socket-Outlet and 1J Impact Energ 0
