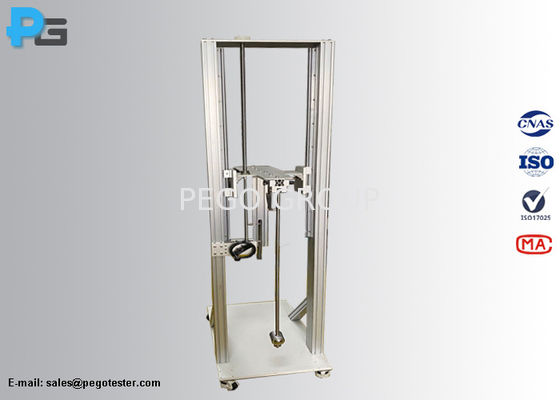

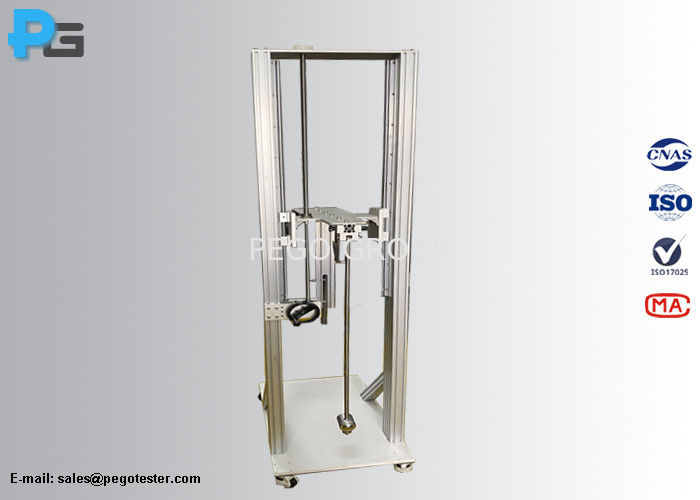

IEC60068-2-75 Appendix D IK01 to IK06 Pendulum Impact Testing Machine

Large Image : IEC60068-2-75 Appendix D IK01 to IK06 Pendulum Impact Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Pego Tester
Certification:	Third-lab calibration certificate
Model Number:	PG-IK11

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD1500-USD5000/set
Packaging Details:	Each packed in a wooden case
Delivery Time:	25 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Configuration:	2J To 50J Striking Elements	Relaese Mode:	Motor-driven
Impact Method:	Pendulum Impact And Vertical Impact	Reference Standards:	IEC61851-1, IEC62262, IEC60068-2-75
Test IK Level:	IK07 To IK11	R/mm:	6, -, 10, 17
F/mm:	10, 20, 20, 25	Lifting Stroke:	200-1500mm (for Pendulum And Vertical Impacts Test), 200-2300mm (for Ball Vertical Impact Test)
Highlight:	IK06 Pendulum Impact Testing Machine , IK01 Pendulum Impact Testing Machine , IEC60068-2-75 Pendulum Impact Testing Machine

IEC60068-2-75 Appendix D IK01 to IK06 Pendulum Impact Testing Machine

1. Introduction

The IK Pendulum Impact Testing Machine is an impact testing device for materials such as shells or glass. Pego make the device according to the requirements of IEC60068-2-75, GB/T2423.55, IEC62262, and GB/T20138 standards. It is mainly used for impact testing of non-metallic material specimens or products such as plastics, glass, and ceramics. It is a test instrument for evaluating the impact resistance of materials. According to the IK impact standards IEC62262 and GB/T20138, this test machine only contains five impact elements: IK07, IK08, IK09, IK10 and IK11. The hammer is released manually and the impact test sample (EUT) is dropped horizontally. This device is often used in lighting standards for impact tests on non-tempered glass. It mainly includes 4 hammers, a host, and bracket casters.

2. Standard

IEC60068-2-75 Environmental testing–Part 2-75: Tests – Test Eh: Hammer tests

IEC62262 Environment testing for electric and electronic products Part 2:Test methods-Test Eh:Hammer tests

3. Parameters

Swing Pipe	Steel pipe 1 (Length: 1000mm, outer diameter: 15.9mm, thickness: 1.5mm) for energy 10J/20J/50J Steel pipe 2 (Length: 1000mm, outer diameter: 16mm, thickness: 0.5mm) for energy 5J Steel pipe 3 (Length: 1000mm, outer diameter: 9.0mm, thickness: 0.5mm) for energies not exceeding 2J
Impact angle	0~90⁰
Falling height	0-500mm adjustable, dial display
Lifting stroke	200-1200mm
Impact hammers	Striking elements: 2J/0.5KG for IK07 test, 5J/1.7KG for IK08 test, 10J/5KG for IK09 test, 20J/5KG for IK10 test, 50J/10KG for IK11 test, made by steel
Hammer release method	Manual release
Mounting Fixtures	Flat mounting plate, adjustable angle 0-90°, equipped with M6 screw holes

Note:

The standard configuration includes 0.5kg, 1.7kg and 5kg hammers for IK 07 to IK10 testing, 10KG hammer for 50J test is a optional device.

Characteristics 0f Striking Elements
Energy/J	≤1 ±10%	2 ±5%	5 ±5%	10 ±5%	20 ±5%	50 ±5%
Equivalent mass±2%kg	0.25(0.2)	0.5	1.7	5	5	10
Material	Nylon	steel
R/mm	10	25	25	50	50	50
D/mm	18.5(20)	35	60	80	100	125
f/mm	6.2(10)	7	10	20	20	25
r/mm	-	-	6	-	10	17
l/mm	Depends

Fall Height
Energy/J	0.14	0.2		(0.3)	0.35	(0.4)	0.5		0.7	1	2	5	10	20	50
Equivalent mass/kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0 .25	0.5	1.7	5	5	10
Fall height±1%mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500

Degrees of protection against external mechanical impacts

IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
0.14J	0.2J	0.35J	0.5J	0.7J	1J	2J	5J	10J	20J

4. Maintenance

4.1 The device is purely mechanical manufacturing, should keep regular maintenance, frequent lubrication of screw and bearing bits.

4.2 The device is strictly prohibited from no-load impact, that is, there should be an object under the striking element

4.3 Remove the striking elements when the device is in non-working state.

4.4 Inspect before using, make sure the apparatus placed level.

4.5 Working condition: 5~35℃ (temperature), 45~75% (R.H.)

5. Figures
