IEC61010-1 Clause 6.8.2 Climate Chamber Programmable Constant High Temperature and Humidity Test Chamber

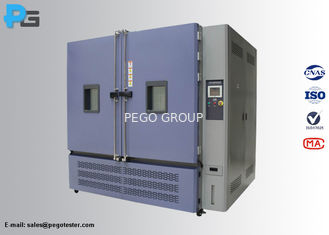

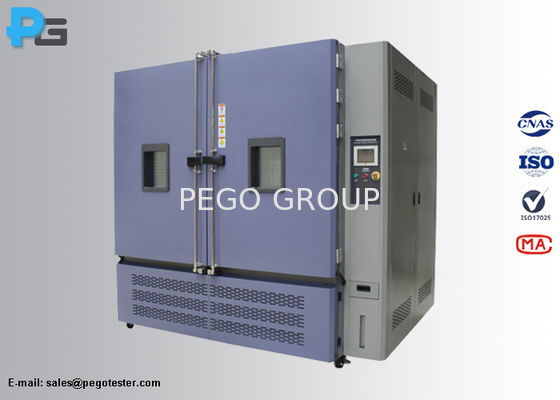

Large Image : IEC61010-1 Clause 6.8.2 Climate Chamber Programmable Constant High Temperature and Humidity Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	PEGO
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-THC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD5000~USD10000
Packaging Details:	carton
Delivery Time:	30 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Standard:

IEC60068-2-1, IEC60068-2-2 And IEC60068-2-3

Material:

Stainless Steel

Application:

Electronic, Battery, Plastic, Food, Paper, Car, LED Lamps

Working Power:

380V/50Hz

Highlight:

Programmable Climate Chamber

High Temperature Climate Chamber

IEC61010-1 Climate Chamber

IEC61010-1 Clause 6.8.2 Climate Chamber Programmable Constant High Temperature and Humidity Test Chamber

1. Introduction

The programmable constant temperature and humidity test chamber is used to provide test environments such as constant high and low temperature humidity, alternating high and low temperature humidity, etc.. It includes refrigeration system, heating system, humidification/dehumidification/water circulation system, air duct circulation system, electrical control system, system safety protection system, etc. The climate chamber can meets the test requirements of IEC61010-1 clause 6.8.2, IEC60068-2-1, IEC60068-2-2 and IEC60068-2-3.

2. Standard

- AS/NZS3112 Approval and test specification - Plugs and socket-outlets clause 2.13.13.3

-IEC60884-1 Plugs and socket-outlets for household and similar purposes –Part 1: General requirements clause 13.23

-IEC60601-1 Medical electrical equipment-Part 1: General requirements for basic safety and essential performance clause 5.7,8.9.3.4

-IEC60598-1 Luminaires–Part 1: General requirements and tests clause 4.13.4

-IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance clause 6.8.2

3. Parameters

Model	100L	408L	800L	1000L
Working dimension (cm)	W40D50H50	W60D80H85	W100D80H100	W100D100H100
Temperature and humidity range	-40℃~+150℃, -70℃~+150℃/20%~98% R.H.
Accuracy:	Temperature: ±0.01℃; humidity: ±0.1% R.H.
Fluctuation	±0.5℃/±2.5%R.H.
Temperature Evenness	≤±2.0℃ (at the range of -40℃~+150℃)
Temperature rise speed	45 minutes from 25℃ to 100℃ (under no load condition)
Temperature fall speed	60 minutes from 20℃ to -40℃ (under no load condition)
Temperature rise and fall overshoot	≤2℃
Maximum bearing capacity	50KG
Constant maximum heating load	100W
Noise	≤70dB
Power supply	380V±10%, 50Hz,3P+N+G
Power consumption	8.5KW
Maximum operating current	40A
Humidification water	Resistivity ≥500MΩ

4. Figures:
