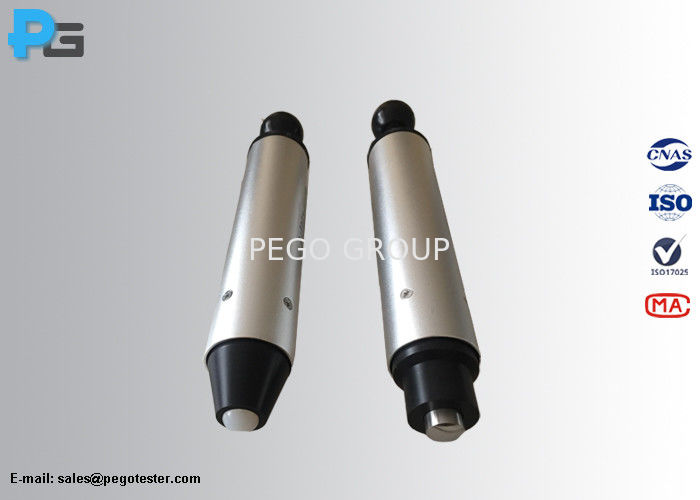

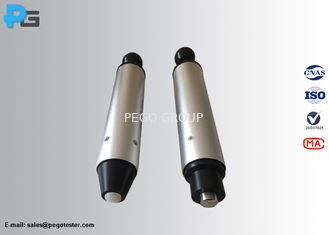

IEC61010-1 Clause 8.2.2 IK Impact Test Universal Spring Hammer

Large Image : IEC61010-1 Clause 8.2.2 IK Impact Test Universal Spring Hammer

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	IK-USH

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	in stock
Payment Terms:	T/T, PayPal

Contact Now

Detailed Product Description

Reference Standard:	IEC61010-1	Application:	IK Impact Test
Material Of Body:	Stainless Steel	Impact Energies:	IK01 (0.14J), IK02 (0.2J), IK03 (0.35J), IK04 (0.5J), IK05 (0.7J) And IK06 (1J)
Release Force:	＜10N	Shipment:	By DHL Or Fedex
Highlight:	IEC61010-1 Universal Spring Hammer , IK Impact Test Universal Spring Hammer , Universal Spring Hammer

IEC61010-1 Clause 8.2.2 IK Impact Test Universal Spring Hammer

1. Introduction

The universal spring hammer is fully designed as per the requirements of IEC61010-1 clause 8.2.2, IEC60068-2-75 and GB/T2423.55, IEC60598-1 clause 4.13.1 and IEC60335-1 clause 21.1. It is suitable for shell strength testing of information technology products and is used by certification and testing organizations and manufacturers to inspect product shells.

2. Standard

- IEC60598-1 Luminaires–Part 1: General requirements and tests clause 4.13.1, includes 0.2J, 0.35J, 0.5J, and 0.7J spring operated hammer,

- IEC60068-2-75, GB/T2423.55 Environmental testing - Part 2-75: Tests - Test Ehb: Spring Hammer,

- IEC60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements clause 21.1, includes 0.5J spring hammer,

- IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance clause 8.2.2.

3. Type of Pego Model

Model	Impact Energy
IK-SH01	0.14±0.01J
IK-SH02	0.20±0.02J
IK-SH03	0.35±0.03J
IK-SH04	0.50±0.04J
IK-SH05	0.70±0.05J
IK-SH06	1.00±0.05J
IK-SH07	2.00±0.10J
IK-SH08	5.00±0.25J
IK-USH	0.14J, 0.20J, 0.35J, 0.50J, 0.70J, and 1.00J, adjustable

4. Parameters

IK level	IK01, IK02, IK03, IK04, IK05 and IK06
Impact energy	0.14J, 0.5J, 0.35J, 0.50J, 0.70J and 1.00J
Error	±10%
Equivalent mass	250g±5g
Radius of hammer	R10mm
Weight	1250g
Trigger force	＜10N
Material of hammer	Polyamide
Material of shell	Stainless steel
