Standard Test Finger for Accessiblity Test

Large Image : Standard Test Finger for Accessiblity Test

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-TPB

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	protection case+carton
Delivery Time:	3 working days
Payment Terms:	T/T, PayPal
Supply Ability:	1000pc/month

Contact Now

Detailed Product Description

Standard Conform To:	IEC61032, IEC60601, IEC62368-1, IEC60598-1, IEC60529	Material:	Insluating Material (hanndle), And Metal (finger)
Lead Time:	3 Working Days	Application:	For Verifying The Accessility To Hazardous Parts
Type:	Access Probe	Thruster:	0N-50N

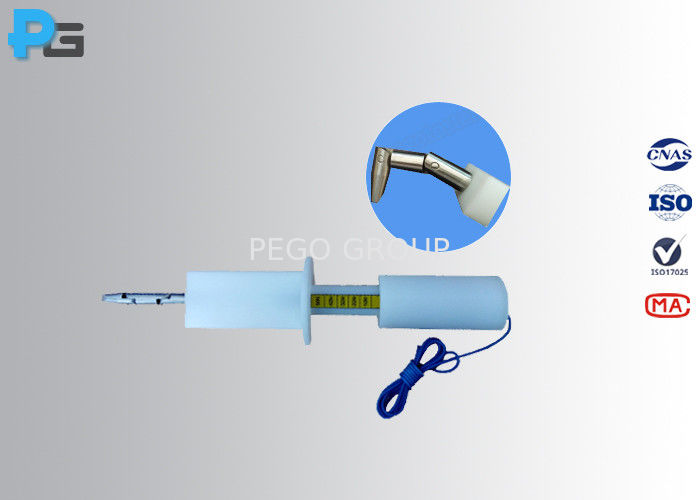

Standard Test Finger for Accessiblity Test

1. Introduction

Standard test finger also be called as jointed test finger and test probe B, it is applied to simulate the human finger to verify the accessbility to hazardous parts of electrical and electronic devices. This probe is widely refered by IEC60335-1, IEC62368-1, IEC60598-1 and other products standards.

Standard test finger is strictly designed according to IEC61032 figure 2, it consists by inslating handle and metal finger. During the test, 10N and 30N forces are requested to apply, so this probe is built-in 0-50N thruster. A wire is lead out to connect with electrical indicator to indicate the accessibility of hazardous live parts.

2. Specification

Model	PG-TPB
Jointed point size 1	30±0.2
Jointed point size 2	60±0.2
Length of finger	80±0.2
Fingertip to baffle size	180±0.2
Fingertip taper fillet	S4±0.05
Diameter of finger	Ф12 0 -0.05
Diameter of baffle	Ф75±0.2
Thickness of baffle	5±0.5
A-A section diameter	Ф50
A-A section width	Ф20±0.2
Thruster	10N optional
Standard	IEC61032
