Enamels Impact Test Apparatus (Pistol Test) ISO4532

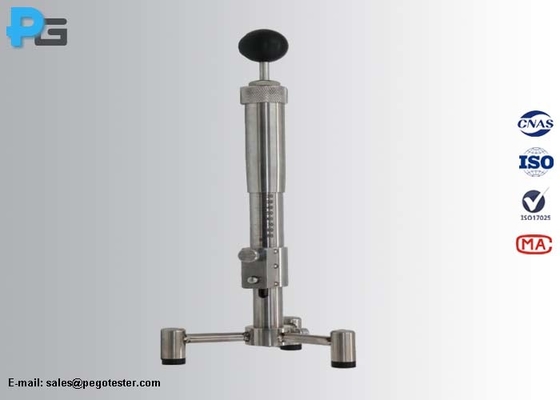

Large Image : Enamels Impact Test Apparatus (Pistol Test) ISO4532

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-EITA

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	carton
Delivery Time:	10 working days
Payment Terms:	T/T
Supply Ability:	100 pcs/month

Contact Now

Detailed Product Description

Nomative Standard:	ISO4532:1991 Figure 1	Application:	Determining The Resistance Of Enamelled Articles To Impact (Pistol Test).
Force Range:	0~90 N/cm	Structural Composition:	Striking Bolt, Spring Load, Trigger And A Tripod

Enamels impact test apparatus (Pistol Test) for determining the resistance of enamelled articles to impact

1. Introduction

The enamel impact test apparatus is designed according to ISO4532:1991 figure 1 for determining the resistance of enamelled articles to impact (Pistol test). The test apparatus consists of a striking bolt with a 5mm steel ball tip, spring load, trigger and a tripod. This device is a completely mechanical instrument with a force range of 0~90 N/cm, which is continuously adjustable and the minimum adjustable precision is 2 N/cm. With a specially designed tripod stand, it can not only test on uneven sample surfaces, but also on the edges of the sample.

2. Specification

Force range	0~90 N/cm
Minimum force scale	2N/cm

3. Figure

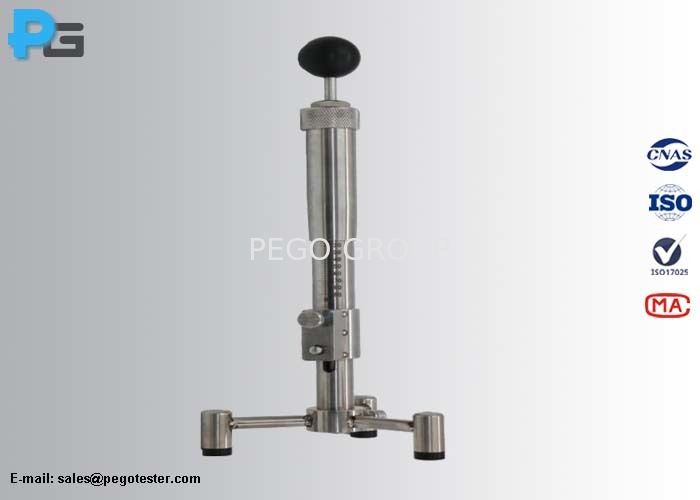

Enamels Impact Test Apparatus (Pistol Test) ISO4532 0
