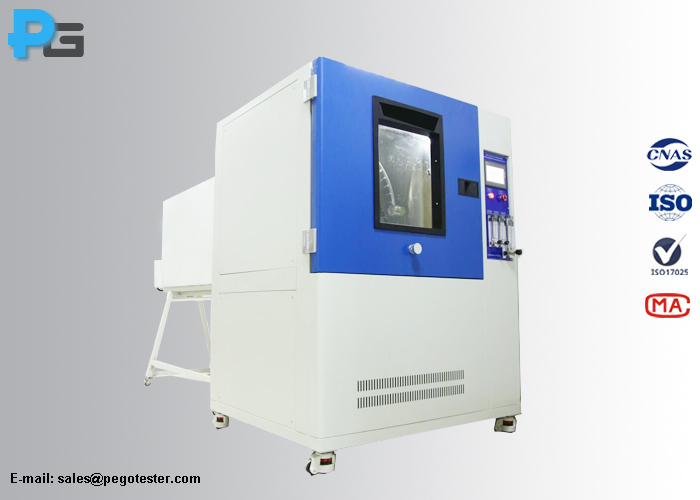

IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable

IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable
IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable

Large Image :  IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-IPX16B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: woodencase
Delivery Time: 20-30 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Test IP Grade: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 Configuration: Drip Box, Oscillating Tube, Jet Hose Nozzles, Turntable
Normative Standards: IEC60529, IEC60335-1, IEC60598-1 Turntable Speed: 1-5r/min
Control Units: PLC+touch Screen Working Power: 380V/50Hz
Highlight:

IPX3-6 rainproof test chamber

,

380V electrical appliances test chamber

,

IEC60529 compliance test equipment

Raintight Test Chamber for Luminaire IEC60259

IEC60259 Raintight Test Chamber for Luminaire verifies protection levels IPX1 through IPX6 according to IEC60529 standards. This comprehensive testing system combines drip box, oscillating tube, and jet hose nozzles in a single unit to simulate various water exposure conditions.

Key Features
  • Tests all IPX1-6 waterproof protection levels in one system
  • Constructed with durable SUS304 stainless steel inner chamber (1.2mm thickness)
  • High-quality steel outer box with protective paint coating
  • Built-in water tank with ball valve control for water recycling
  • User-friendly Panasonic PLC control with 7-inch touch screen interface
  • Complies with IEC60529, GB4208-2008, and GB7000.1 standards
Technical Specifications
Parameter Specification
Model IPX16B
Control System 7 inch touch screen + PLC
Inner Chamber Dimensions 1300×1300×1450mm (W×D×H)
Outer Dimensions 1750×3800×2150mm (L×D×H)
Turntable Specifications Ø600mm diameter
50kg capacity
1-5r/min speed
400-700mm adjustable height
0° or 15° tilt angle
IPX1-2 Drip Box 800×800mm square drip board
Φ0.4mm nozzle aperture
20×20mm nozzle spacing
1mm/min (IPX1) or 3mm/min (IPX2) delivery rate
IPX3-4 Oscillating Tube R600mm tube radius
1.8L/min±5% (IPX3) or 2.6L/min±5% (IPX4) delivery rate
±120° (IPX3) or ±350° (IPX4) tube angle
4s for 2×120° or 12s for 2×360° tube speed
IPX5-6 Jet Nozzles Φ6.3mm (IPX5) or Φ12.5mm (IPX6) nozzle aperture
12.5±0.625 L/min (IPX5) or 100±5 L/min (IPX6) delivery rate
2.5m nozzle-to-specimen distance
Adjustable water pressure
Power Requirements 380V/50Hz (3 phase 4 wires + ground)
220V/50Hz specimen power
3kW power consumption
Operating Conditions 5℃~35℃ temperature
≤85% relative humidity
86kPa~106kPa pressure
Product Image
IEC60259 Raintight Test Chamber IPX1-6 with 1-5r/min Turntable 0
