Jet Nozzle Ingress Protection Testing Machine with 6.3mm and 12.5mm Nozzle Diameter 12 Months Warranty and 7 Inch Touch Screen

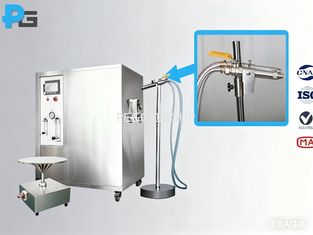

Large Image : Jet Nozzle Ingress Protection Testing Machine with 6.3mm and 12.5mm Nozzle Diameter 12 Months Warranty and 7 Inch Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	PEGO
Certification:	Third-Lab Calibration Certificate
Model Number:	IPX56A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD5000~USD8000
Packaging Details:	woodencase
Delivery Time:	30 working days
Payment Terms:	T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Standard:	IEC60529	Nozzle Diameter:	6.3mm And 12.5mm
IP Code:	IPX5 And IPX6	Warranty:	12 Months
Condition:	New	Application:	For IPX5 And IPX6 Testing
Highlight:	6.3mm and 12.5mm Nozzle Diameter Jet Nozzle Ingress Protection Testing Machine , 12 Months Warranty IP Testing Equipment , 7 Inch Touch Screen Waterproof Testing Machine

IPX5 and IPX6 Jet Nozzle Ingress Protection Testing Machine

Designed for IPX5 and IPX6 testing standards according to IEC60529, IEC60598-1, GB4208, and GB7000.1 specifications.

Product Introduction

The IPX5 and IPX6 jet nozzle ingress protection testing machine is designed for water spray and violent water spray level waterproof testing of outdoor electrical and electronic products and lighting product shells. Suitable for certification and testing agencies and manufacturers to conduct waterproof inspections on products.

Features include:

PLC control with color touch screen interface
Precision glass rotor flowmeter for accurate measurements
Manual adjustment to reach standard-specified values

Compliance Standards

IEC60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.5 and 14.2.6 Figure 6
IEC60598-1 Luminaires - Part 1: General requirements and tests

Technical Parameters

Parameter	Specification
Model	IPX56A
Control system	7 inch touch screen+Panasonic PLC
Outer size	1100mm900mm1300mm (control box) 600mm600mm800mm (turntable)
Water tank	550L, 8006001145 (mm), SUS304 stainless steel
Aperture diameter (IPX5/IPX6)	6.3mm / 12.5mm
Delivery rate (IPX5/IPX6)	12.5±0.625 L/min / 100±5 L/min
Material	SUS304 stainless steel
Working power	AC 380V/50Hz, 3KW (3 phase 4 wire + protective ground wire)

Site Requirements

Level ground with unobstructed drainage
Waterproofed ground and walls with floor drain or drainage ditch
Water source with pressure ≥0.2Mpa, 4/8 inch faucet within 2m
Independent leakage protection air switch within 2m

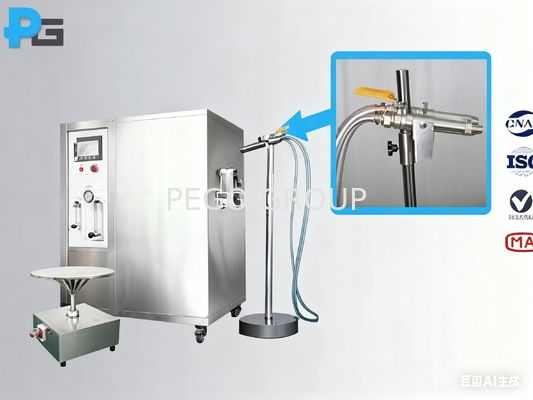

Product Image
