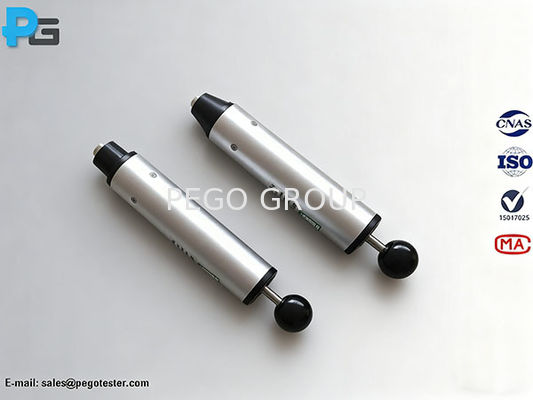

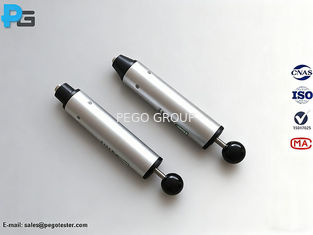

IK01 to IK07 Spring Operated Hammer for Mechanical Strength Testing with IEC60068-2-75 Compliance and 0.14J to 2J Impact Energy

IK01 to IK07 Spring Operated Hammer for Mechanical Strength Testing with IEC60068-2-75 Compliance and 0.14J to 2J Impact Energy
IK01 to IK07 Spring Operated Hammer for Mechanical Strength Testing with IEC60068-2-75 Compliance and 0.14J to 2J Impact Energy

Large Image :  IK01 to IK07 Spring Operated Hammer for Mechanical Strength Testing with IEC60068-2-75 Compliance and 0.14J to 2J Impact Energy

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Calibration Certificate (CNAS)
Model Number: PG-SHxx
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD300~USD1500
Packaging Details: carton
Delivery Time: in stock
Payment Terms: T/T
Supply Ability: 100 pcs/month
Contact Now
Detailed Product Description
Reference Standards: IEC60068-2-75, IEC62262, IEC60598-1, IEC60335-1 Test IK Level: IK01, IK02, IK03, IK04, IK05, IK06, IK07
Impact Energy: 0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J, 2J Release Mode: Manual
Other Names: Spring Hammer, Spring Impact Hammer, Spring Operated Hammer, Spring Hammer Test Apparatus Material Of Striking Element: Polyamide
Highlight:

IK01 to IK07 Spring Operated Hammer

,

IEC60068-2-75 Compliant Spring Impact Hammer

,

0.14J to 2J Impact Energy Spring Hammer Test Apparatus

IK01 to IK07 Spring Operated Hammers for Assessing Mechanical Strength of Electrical Appliance
A spring operated hammer is a professional testing device used to simulate mechanical impact environments and test the impact resistance of products. It is manufactured in strict compliance with the requirements specified in Figure E.1 of IEC 60068-2-75 and mainly consists of three parts: a housing, a striking element, and a release system.
The core working mechanism of this device lies in storing energy by compressing a spring, then instantly releasing the energy through a triggering mechanism, and finally driving the hammerhead to strike the test piece with a preset force.
Applications
Spring impact hammers are mainly suitable for IK01 to IK07 tests and fully meet the testing requirements of IEC 62262. Currently, they are widely used in product quality and safety testing in industries such as:
  • Electronics and electrical appliances
  • Medical devices
  • Automotive components
  • Toys and consumer products
Their core function is to verify whether products can withstand impacts of specific intensity without physical damage or functional failure during transportation, daily use, or accidental collisions.
Specifications
Parameter Specification
Impact energy 2J, 0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J
Test IK level IK07, IK01, IK02, IK03, IK04, IK05, IK06
Error ±5%, ±10%
Equivalent mass 500g±5g, 250g±5g
Radius of hammer R25mm, R10mm
Weight 1250g
Trigger force <10N
Material of hammer Steel, Polyamide
Material of shell Stainless steel
