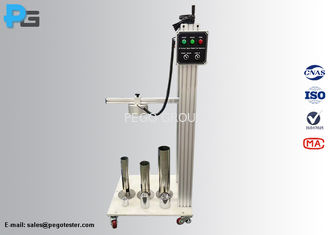

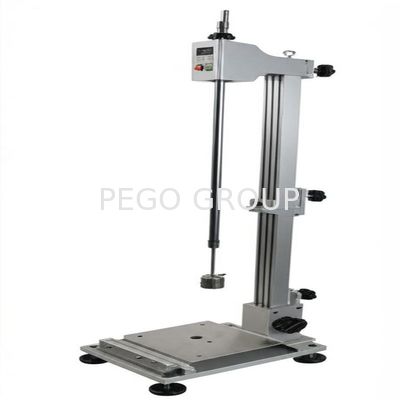

Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing

Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing
Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing

Large Image :  Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Calibration Certificate (CNAS)
Model Number: PG-VTXX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD4000
Packaging Details: woodencase
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Reference Standards: IEC60068-2-75, IEC62262, IEC60598-1, IEC60335-1, IEC62196-1 Test IK Level: IK07, IK08, IK09, IK10, IK11
Impact Energy: 2J, 5J, 10J, 20J, 50J Configuration: Striking Elements, Guideways, Test Rig
Material Of Striking Element: Steel Release Mode: Electromagnetic
Working Power: 220V, 50/60Hz Application: Luminaire, Electrical Appliance, EVCS
Highlight:

IK07 to IK11 Vertical Impact Hammer Test Apparatus

,

IEC60068-2-75 Compliant Impact Hammer Test Equipment

,

0-1000mm Adjustable Height IK Mechanical Strength Tester

Vertical Impact Hammer Test Apparatus for IK07 to IK11 Mechanical Strength Tests as Per IEC60068-2-75
The IK Vertical Hammer is a professional testing tool designed for high-energy mechanical impact tests according to IEC60068-2-75 test Ehc standards. This apparatus performs IK07 to IK11 tests as specified in IEC62262, specifically designed for accessible horizontal surfaces. The system consists of a striking element and guideway for precise impact testing.
Applications
Vertical hammers are essential for mechanical impact strength testing of products including luminaires, household appliances, and Electric Vehicle Charging Stations (EVCS). These tests help manufacturers verify compliance with standards such as IEC60598-1 and IEC62196-1, ensuring product safety and reliability.
Specifications
Parameter Value
Travel height 0~1000mm (manual adjustable)
Dimension of rigid plane support 600mm*600mm (customizable)
Impact hammers 0.5kg, 1.7kg, 5kg, 5kg steel hammers for IK07 to IK10 vertical impact
Impact energy 2J, 5J, 10J, 20J
Size of guideway (diameter*height) Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*520mm, Φ129mm*650mm
Release mode Electromagnetic release
Working power 220V/50Hz
Key Advantages
  • Customizable travel height: The 0-1000mm adjustable range accommodates various impact point heights for flexible testing configurations.
  • Stable specimen support: Includes a rigid plane support (600mm×600mm) to ensure accurate and reliable test results during mechanical impact evaluations.
