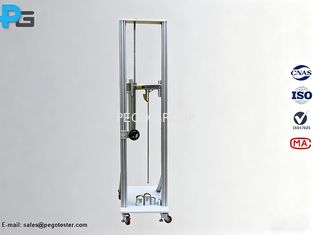

IK01 to IK11 Pendulum Impact Hammer with Steel and Polyamide Striking Elements for 220V, 50/60Hz Mechanical Strength Tests

IK01 to IK11 Pendulum Impact Hammer with Steel and Polyamide Striking Elements for 220V, 50/60Hz Mechanical Strength Tests
IK01 to IK11 Pendulum Impact Hammer with Steel and Polyamide Striking Elements for 220V, 50/60Hz Mechanical Strength Tests

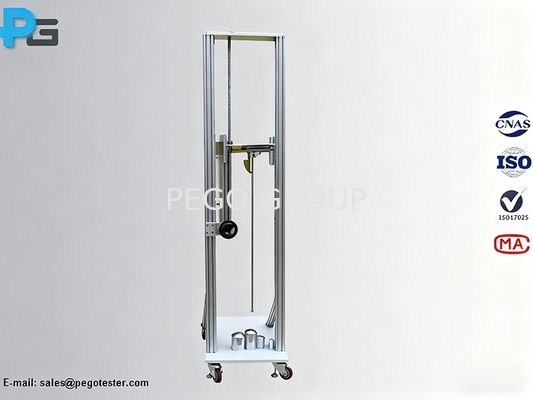

Large Image :  IK01 to IK11 Pendulum Impact Hammer with Steel and Polyamide Striking Elements for 220V, 50/60Hz Mechanical Strength Tests

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Calibration Certificate (CNAS)
Model Number: PG-PDXX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-USD5000
Packaging Details: woodencase
Delivery Time: 10-20 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Reference Standards: IEC60068-2-75, IEC62262, IEC60598-1, IEC60335-1, IEC62196-1, IEC60884-1 Test IK Level: IK01 To IK06, IK07, IK08, IK09, IK10, IK11
Impact Energy: ≤1J, 2J, 5J, 10J, 20J, 50J Configuration: Striking Elements, Guideways, Test Rig
Material Of Striking Element: Steel And Polyamide Release Mode: Electromagnetic
Working Power: 220V, 50/60Hz Application: Luminaire, Electrical Appliance, EVCS
Highlight:

220V Pendulum Impact Hammer

,

IK01 to IK11 Impact Test Apparatus

,

Steel and Polyamide Mechanical Impact Tester

IK01 to IK10 Pendulum Impact Hammer Test Apparatus
Professional tool designed for mechanical impact tests compliant with IEC60068-2-75 and IEC62262 standards, capable of performing IK01 to IK11 tests on vertical surfaces.
Introduction
The IK pendulum hammer is specifically designed for mechanical impact tests according to IEC60068-2-75 test Eha. The apparatus features a pendulum rotating at its upper end, maintaining movement in a vertical plane with the pivot axis positioned 1000mm above the measuring point. The hammer consists of a rigid arm and striking element.
Specifications
Component Description
Swing Pipe Steel pipe 1: Length: 1000mm, outer diameter: 15.9mm, thickness: 1.5mm (for energies exceeding 2J)
Steel pipe 2: Length: 1000mm, outer diameter: 9.0mm, thickness: 0.5mm (for energies ≤2J)
Impact angle 0~90°
Lifting stroke 200-1200mm
Impact hammers ≤1J (IK01-IK06): Nylon striking elements
2J (IK07), 5J (IK08), 10J (IK09), 20J (IK10): Steel striking elements
Equivalent mass ≤1J: 0.2KG
IK07: 0.5KG
IK08: 1.7KG
IK09: 5KG
IK10: 5KG
IK11: 10KG
Hammer release Manual release
Mounting Fixtures 1) Designed per IEC60068-2-75 figure D.3 for IK01-IK06 tests
2) Flat mounting plate for IK07-IK10 tests (0-90° adjustable, M6 screw holes)
Key Advantages
  • Customizable travel height (200-1200mm standard range) to accommodate various impact point heights
  • Includes rigid plane support for small specimens, with capability to test large/heavy specimens placed directly on ground
  • Single apparatus capable of performing all IK01 to IK11 tests
Applications & Standards
The vertical hammer is designed in compliance with IEC60068-2-75 and GB2423.55 standards. It is used for testing mechanical impact strength of various equipment including:
  • Plugs and socket-outlets
  • Mounting boxes and luminaires
  • Substation cabinets
  • Household appliances
  • EV charging stations
Meets test requirements of IEC60884-1, IEC60598-1, IEC62196-1 and related standards.
