Double-Arm Free Fall Drop Testing Equipment for Container with ASTM D5276 IEC 60068-2-27 CNAS 29999 Compliance

Double-Arm Free Fall Drop Testing Equipment for Container with ASTM D5276 IEC 60068-2-27 CNAS 29999 Compliance
Double-Arm Free Fall Drop Testing Equipment for Container with ASTM D5276 IEC 60068-2-27 CNAS 29999 Compliance

Large Image :  Double-Arm Free Fall Drop Testing Equipment for Container with ASTM D5276 IEC 60068-2-27 CNAS 29999 Compliance

Product Details:
Place of Origin: China
Brand Name: Pego
Certification: Third-lab Calibration Certificate
Model Number: PG-FFD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-USD5000
Packaging Details: wooden case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Standard: ASTM D5276, IEC 60068-2-27, CNAS 29999, ISO 2248-1985 Application: Package, Carton, Container
Drop Height: 400mm-1500mm Power Supply: 220V 50Hz
Controller: PLC+touch Screen Material Of Drop Surface: Steel Rigid Surface
Highlight:

ASTM D5276 Drop Testing Equipment

,

IEC 60068-2-27 Free Fall Drop Tester

,

CNAS 29999 Impact Test Machine

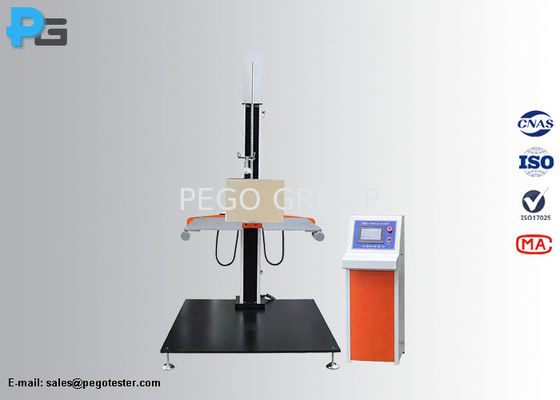

Double-Arm Free Fall Drop Testing Equipment for Container
Double-arm free-fall drop test equipment replicates free-fall scenarios that containers may experience during transportation or rough handling. The equipment tests container faces, corners, and edges, complying with industry standards including CNAS 29999, ISO 2248-1985, ASTM D5276, and IEC 60068-2-27. This testing provides critical data to improve container design and protective capabilities.
Key Testing Objectives
  • Evaluate a container's resistance to sudden impact forces from free falls
  • Assess how effectively a container (with internal packaging) protects contents during abrupt impacts
Technical Specifications
Specification Details
Overall size L1200mm * D1100mm * H2050mm (test rig)
L400mm * D430mm * H1150mm (control box)
L780mm * W280mm (Double-arm)
Control unit Touch screen
Maximum size of test specimen L800mm * W800mm * H1000mm
Maximum weight of test specimen 80KG
Falling height 400-1500mm
Error of falling height ±10mm
Impact surface Error: <10
Material: steel
Thickness: 20mm
Dimension: L1200mm * W1100mm
Working power 220V/50Hz

Tag:

pendulum impact tester,

impact testing machine,

impact test apparatus
