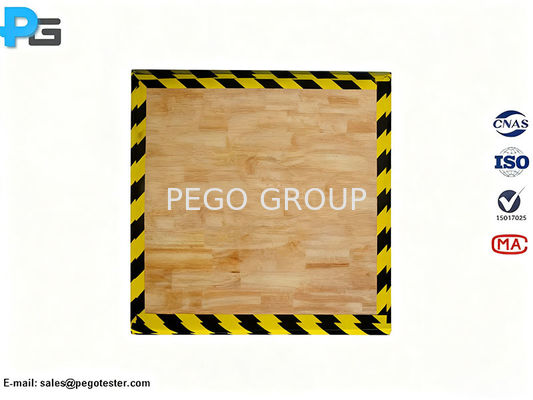

Hardwood Test Surface for Drop Impact Test with 600mm x 600mm Oak and Plywood Construction Compliant with GB4943.1, UL1993, UL1017

Hardwood Test Surface for Drop Impact Test with 600mm x 600mm Oak and Plywood Construction Compliant with GB4943.1, UL1993, UL1017
Hardwood Test Surface for Drop Impact Test with 600mm x 600mm Oak and Plywood Construction Compliant with GB4943.1, UL1993, UL1017

Large Image :  Hardwood Test Surface for Drop Impact Test with 600mm x 600mm Oak and Plywood Construction Compliant with GB4943.1, UL1993, UL1017

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Calibration certificate (cnas logo)
Model Number: PG-HS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD300~USD1000
Packaging Details: carton
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 100 pc/month
Contact Now
Detailed Product Description
Reference Standard: GB4943.1, UL1993, UL1017 Construction: Oak Board*1, Plywood Board *2
Surface Dimension: L600mm * W600mm (customizable) Application: Drop Impact Test
Highlight:

600mm x 600mm Hardwood Test Surface

,

GB4943.1

,

UL1993

Hardwood Test Surface for Drop Impact Test (Oak + Plywood)
The hardwood surface complies with the specifications outlined in GB4943.1-2011 Clause 4.2.6, UL1993 Clause 8.8.2, and UL1017 Clause 5.19.2. They are used in drop impact tests to evaluate the impact resistance of test samples. Throughout the test, the hardwood surface must be placed on a concrete floor or an equivalent non-resilient flooring material.
Specification
Item GB Hardwood Surface UL Hardwood Surface
Size 600*600*52mm (customized) 600*600*63mm (customized)
First Layer Oak board*1 with thickness 13mm above Oak board*1 with thickness 25mm above
Second Layer Plywood*2 with thickness 19~20mm Plywood*2 with thickness 19~20mm
Structure The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening
Standard GB4943.1-2011 UL1993, UL1017
