IEC 60529 Water Jetproof Testing Equipment with 550L Water Tank and PLC Control System for IPX5 IPX6 Testing

IEC 60529 Water Jetproof Testing Equipment with 550L Water Tank and PLC Control System for IPX5 IPX6 Testing
IEC 60529 Water Jetproof Testing Equipment with 550L Water Tank and PLC Control System for IPX5 IPX6 Testing
video play

Large Image :  IEC 60529 Water Jetproof Testing Equipment with 550L Water Tank and PLC Control System for IPX5 IPX6 Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: IPX56AS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 20 working days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Related Standard: IEC60529 Configuration: Jet Nozzles, Control Box, Turntable, Nozzle Holder
Test IP Grade: IPX5, IPX6 Control Units: PLC+touch Screen
Working Power: AC 380V/ 50Hz, 3KW Shipment: By Sea Or Air
Highlight:

550L Water Tank Water Jetproof Testing Equipment

,

AC 380V Power IEC 60529 Test Equipment

,

PLC Control System IPX5 IPX6 Testing Equipment

IEC 60529 Water Jetproof Testing Equipment For IPX5 And IPX6 Testing
Introduction

IPX5 and IPX6 Jet Nozzles Water Jetproof Testing Equipment is designed according to IEC60529 clause 14.2.5 and 14.2.6. Also known as hose nozzles, this equipment simulates water jets and powerful water jets conditions for testing electronic products, luminaires, electric components, motors, and household appliances. The test helps evaluate product performance and provides valuable data for design improvement and inspection.

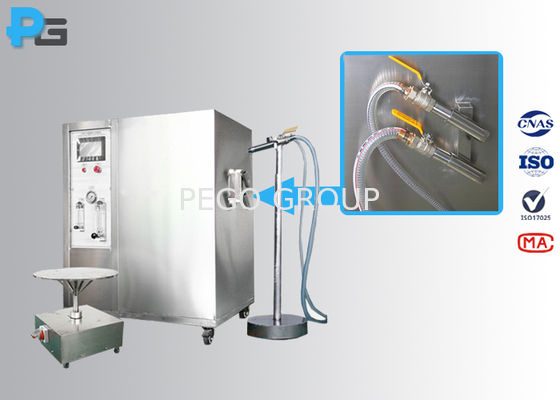

This open-type equipment has no size or weight limitations for the device under test. The system consists of a control box, turntable, jet nozzles (6.3mm and 12.5mm diameter), and nozzle holder. The control box includes a built-in 550L water tank, and test distance is manually controlled.

  • IPX5 Testing: Uses 6.3mm nozzle with 12.5L/min flow rate, minimum 3 minutes test time (1min/m²), at 2.5m-3m distance
  • IPX6 Testing: Uses 12.5mm nozzle with 100L/min flow rate, minimum 3 minutes test time (1min/m²), at 2.5m-3m distance
IEC 60529 Water Jetproof Testing Equipment with 550L Water Tank and PLC Control System for IPX5 IPX6 Testing 0
Specification
Model IPX56A
Control system 7 inch touch screen+Panasonic PLC
Outer size 1100mm*900mm*1300mm (L*W*H, control box)
600mm*600mm*800mm (L*W*H, turntable)
Water tank 550L, 800*600*1145 (mm), made by SUS304 stainless steel
Aperture diameter of IPX5 nozzle 6.3mm
Aperture diameter of IPX6 nozzle 12.5mm
Delivery rate for IPX5 (L/min) 12.5±0.625
Delivery rate for IPX6 (L/min) 100±5
Water pressure (Mpa) As per the standard requirement
Flowmeter control Manual control
Distance from specimen 2.5~3m (manual control)
Nozzle fixed way Hand-held
Diameter of turntable Φ600mm
Power of turntable AC220V
Material SUS304 stainless steel
Protection Electric leakage, hydropenia, short circuit
Working power AC 380V/ 50Hz, 3KW (3 phase 4 wire + protective ground wire)
Working conditions 5℃~35℃ (temperature), ≤85% (R.H.), 86kPa~106kPa (pressure)
Water source 1). User must configure water source with ≥0.2Mpa pressure and install 4/8 inch faucet
2). Faucet must be ≤2 meters from equipment
Site requirements Level ground, unobstructed drainage, waterproofed surfaces, floor drain/drainage ditch
Power switch requirements 1). User must install dedicated leakage protection air switch
2). No knife switches or power sockets
3). Switch must be ≤2 meters from equipment
Frequently Asked Questions
Can we customize the bearing capacity of the turntable?
Yes, the standard turntable supports samples under 50KG, but we offer customization services.
What kind of water can be used?
Fresh water is recommended, though test requirements may vary by product standards. Purified water reduces nozzle clogging risk, but tap water is commonly used. The equipment includes two water filters.
Can the water be recycled?
No, this open-type equipment doesn't recycle water. We offer chamber-type equipment with water recycling as an alternative.
Will you provide on-site installation service?
The equipment ships nearly fully assembled, requiring only simple wiring connections upon receipt.
What is the warranty period and how does after-sales service work?
12-month warranty begins upon delivery. Our engineers resolve 95% of issues remotely within 24 business hours. For component failures (rare due to high-quality parts), we provide free replacements during warranty and guide installation.
