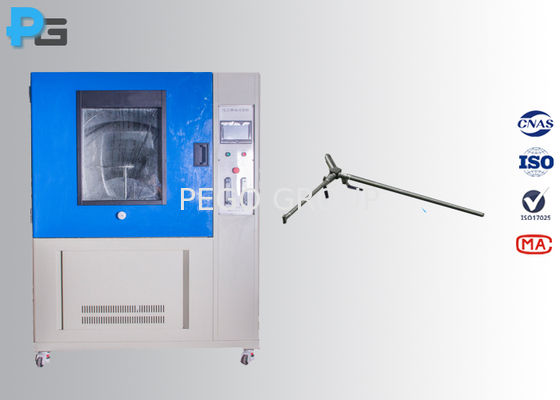

JIS D0203 Water Ingress Protection Testing Machine with 40 Nozzles 7 Inch Touch Screen and 220V/50Hz Power

JIS D0203 Water Ingress Protection Testing Machine with 40 Nozzles 7 Inch Touch Screen and 220V/50Hz Power
JIS D0203 Water Ingress Protection Testing Machine with 40 Nozzles 7 Inch Touch Screen and 220V/50Hz Power
video play

Large Image :  JIS D0203 Water Ingress Protection Testing Machine with 40 Nozzles 7 Inch Touch Screen and 220V/50Hz Power

Product Details:
Place of Origin: China
Brand Name: PEGO GROUP
Certification: Third-Lab Calibration Certificate
Model Number: PG-JISD0203
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6000~USD10000
Packaging Details: woodencase
Delivery Time: 30 working days
Payment Terms: T/T,Western Union,MoneyGram
Contact Now
Detailed Product Description
Standard: JIS D0203 Material: SUS304 Stainless Steel
Type: Test Chamber Working Power: 220V/50Hz
Warrranty: 12 Months Shippment: By Sea
Highlight:

220V/50Hz Power Water Ingress Protection Testing Machine

,

40 Nozzles Environmental Test Chamber

,

7 Inch Touch Screen JIS D0203 Testing Equipment

JISD0203 R1 R2 S1 S2 Water Ingress Protection Environment Testing Machine for Auto Parts
Introduction
The JISD0203 environment testing machine is designed according to JIS0203 standards for spray tests (R1 and R2) and jet tests (S1 and S2). This equipment evaluates automobile parts' resistance to water ingress, featuring 2 nozzles for R1/R2 testing and 40 nozzles (Φ1.2mm diameter) for S1/S2 testing. The test chamber is controlled via a 7-inch touch screen and Panasonic PLC, with a transparent viewing window for observing experiments.
Key Features
  1. Compliant with JIS D0203 R1/R2/S1/S2 spray water test standards
  2. High-quality steel plate shell with SUS304# stainless steel inner chamber and turntable
  3. Box-type structure with water tank, transparent viewing window, and LED lighting for clear sample observation
  4. Manual control of JIS nozzle flow and pressure on the panel
  5. Turntable with adjustable speed and angle settings via LCD screen
  6. Equipped with Taiwan Weilun 7-inch screen and Panasonic PLC
  7. Capable of operating R1, R2, S1, S2 tests individually or simultaneously
Technical Specifications
Working Chamber Size 1000*1000*1000mm (L*D*H)
Dimension 1500*1380*2000mm (L*D*H)
Turntable Diameter ￠400mm
Turntable Load Weight 50KG
Lifting height 450-750 mm
Turntable Speed 1 -20r/min
Turntable Angle 0° or 15° (Horizontal)
Test Time 0-999 min
Weight About 250kg
JIS D0203 R1/R2 Parameters
Rain nozzle Strictly designed according to JIS D0203 standard
Pressure R1=0.01Mpa, R2=0.03Mpa, 0.003～0.015MPa adjustable
Nozzle number 2pcs
Spray water time range 0～99h59m, settable
Tube rotation speed 1～23r/min, adjustable
JIS D0203 S1/S2 Parameters
Spray Nozzle Strictly designed according to JIS D0203 standard
Pressure S1=0.1Mpa, S2=0.3Mpa, 0.03～0.15MPa adjustable
Nozzle diameter Φ1.2mm
Nozzle number 40pcs
Spray water time range 0～99h59m, settable
Tube rotation speed 1～23r/min, adjustable
Electrical Parameters
Power supply 220V
Power supply of specimen 220V
Power 1.0KW
Safety protection Leakage protection, water shortage protection, short circuit protection
Test Types and Purposes
Type Symbol Test Purpose
Moisture Test M1 Auto parts against moisture
Moisture Test M2 Auto parts against high temperature and moisture
Spray Test R1 Auto parts against water direct contact
Spray Test R2 Auto parts against rain or spray water indirect contact
Jet Test S1 Auto parts against rain or jet water direct contact
Jet Test S2 Auto parts against riptide
Immersion Test D1 Auto parts against temporary immersion
Immersion Test D2 For checking water immersion auto parts
Immersion Test D3 For checking the special purpose auto parts
Third-Lab Calibration Certificate
