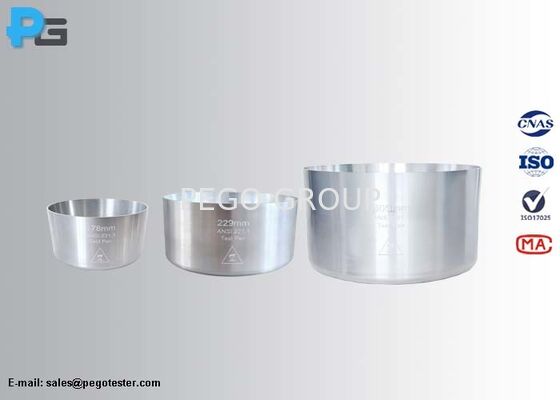

CSA/ANSI Z21.1:24 Compliant 6063 Aluminum Test Pan in φ178mm/φ229mm/φ305mm Sizes for Cooking Burner Testing

Large Image : CSA/ANSI Z21.1:24 Compliant 6063 Aluminum Test Pan in φ178mm/φ229mm/φ305mm Sizes for Cooking Burner Testing

Product Details:

Place of Origin:	China
Brand Name:	Pego Electronics
Certification:	CNAS Calibration Certificate
Model Number:	PG-AVPZ21.1

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD500~USD1500
Packaging Details:	carton
Delivery Time:	5-10 working days
Payment Terms:	T/T
Supply Ability:	100pcs/months

Contact Now

Detailed Product Description

Normative Standard:

CSA/ANSI Z21.1:24

Material:

Aluminum

Application:

For Verifying The Visible Of The Control Indication Of Top Surface Cooking Section Burner

Outside Diameter (top):

φ178mm, φ229mm, φ305mm

Highlight:

CSA/ANSI Z21.1:24 Compliant Test Pan

6063 Aluminum Test Pan

φ178mm/φ229mm/φ305mm Sizes Cooking Test Vessel

Aluminum Test Pans Conforms to CSA/ANSI Z21.1:24 clause 4.7.16 and table 5 for Testing Top Surface Cooking Burner

These aluminum test pans are engineered to meet the rigorous testing requirements specified in CSA/ANSI Z21.1:24 clause 4.7.16 and table 5. They are specifically designed for verifying the visible control indication of top surface cooking section burners in compliance with industry standards.

Product Specifications

Pan Dimension	Rated burner input ≤9000 Btu/h (2638 W)	Rated burner input 9001-14999 Btu/h (2638-4395 W)	Rated burner input ≥15000 Btu/h (4396 W)
Outside diameter-top	178mm	229mm	305mm
Projected outside diameter-bottom	165mm	216mm	298mm
Height	88.9mm	102mm	165mm

Material: Manufactured from #6063 aluminum alloy for optimal performance and durability.
