IK07 to IK11 Vertical Hammer Impact Test Apparatus with 2J to 50J Impact Energies and Electromagnetic Release

IK07 to IK11 Vertical Hammer Impact Test Apparatus with 2J to 50J Impact Energies and Electromagnetic Release
IK07 to IK11 Vertical Hammer Impact Test Apparatus with 2J to 50J Impact Energies and Electromagnetic Release

Large Image :  IK07 to IK11 Vertical Hammer Impact Test Apparatus with 2J to 50J Impact Energies and Electromagnetic Release

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-VT50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 15 business days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Reference Standard: IEC62262, IEC60068-2-75 Material Of Rig: Aluminum Alloy
Impact Energies: 2J To 50J Test IK Level: IK07 To IK11
Release Mode: Electromagnetic Release Impact Angle: 0~90 Degree
Shipment: By Sea
Highlight:

IK07 to IK11 Vertical Hammer Impact Test Apparatus

,

2J to 50J Impact Energies Mechanical Impact Tester

,

Electromagnetic Release IK Impact Test Equipment

IK07 (2J) to IK11 (50J) Vertical Hammer Mechanical Impact Test Apparatus IEC62262
The vertical hammer mechanical impact test apparatus meets the testing requirements of IEC60068-2-75 test Ehc and IEC62262 standards. This precision equipment is designed for mechanical impact testing across various energy levels from IK07 (2J) to IK11 (50J).
Equipment Overview

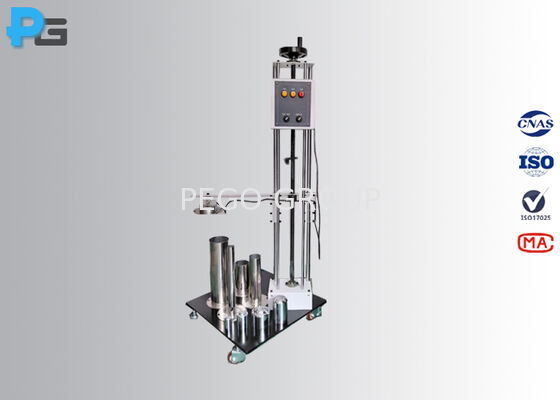

The apparatus consists of striking elements, guideways and a test rig. The striking elements for IK07 (2J) to IK11 (50J) are manufactured from steel, with the equivalent mass of the hammer equal to the actual mass of the striking element. The striking element falls along a guideway that does not rest on the specimen, ensuring the element is free from the guideway upon impact.
The test rig is constructed from aluminum alloy and features four wheels at the bottom, allowing the entire device to move freely. The vertical hammer configuration is ideal for impact points on accessible horizontal surfaces, with customizable travel height to accommodate various specimen sizes.
IK07 to IK11 Vertical Hammer Impact Test Apparatus with 2J to 50J Impact Energies and Electromagnetic Release 0
Technical Specifications
Parameter Specification
Travel Height 0~1000mm (manual adjustable)
Impact Hammers
  • 0.5KG/2J for IK07 test
  • 1.7KG/5J for IK08 test
  • 5KG/10J for IK09 test
  • 5KG/20J for IK10 test
  • 10KG/50J for IK11 test
  • Material: Steel
Guideway Dimensions (Diameter*Height) Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*520mm, Φ129mm*650mm
Release Mode Electromagnetic release
Working Power 220V/50Hz
Frequently Asked Questions
Will you provide installation service?
The equipment does not require installation service. We ship the equipment as a complete, ready-to-use unit.
What is the warranty period of your device?
The warranty period is 12 months upon buyer receipt of the goods.
Can the device come with calibration certificate?
Yes, users can request a calibration certificate issued by an ISO17025 authorized laboratory. The cost of the calibration certificate is charged separately.
