IEC60529 Compliance Brass Nozzle Waterproof Tester with 10L/min Flow Rate for IPX3 and IPX4 Testing Equipment

IEC60529 Compliance Brass Nozzle Waterproof Tester with 10L/min Flow Rate for IPX3 and IPX4 Testing Equipment
IEC60529 Compliance Brass Nozzle Waterproof Tester with 10L/min Flow Rate for IPX3 and IPX4 Testing Equipment
video play

Large Image :  IEC60529 Compliance Brass Nozzle Waterproof Tester with 10L/min Flow Rate for IPX3 and IPX4 Testing Equipment

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: Third-Lab Calibration Certificate
Model Number: IPX34AS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 20 business days
Payment Terms: T/T,PayPal
Contact Now
Detailed Product Description
Reference Standard: IEC60529, IEC61851, IEC62196-1 Configuration: Spray Nozzle, Control Chamber
Material Of Nozzle: Brass Application: For Testing Household Appliance, Luminaire, Auto Parts And Charging Station
Working Power: 220V/50Hz
Highlight:

IEC60529 Compliance Waterproof Tester

,

Brass Nozzle Spray Nozzle Tester

,

10L/min Flow Rate IPX3 and IPX4 Testing Equipment

IEC60529 IPX3 and IPX4 Ingress Protection Testing Spray Nozzle Waterproof Tester
The IPX34 spray nozzle waterproof tester is engineered for comprehensive ingress protection testing according to international standards, ensuring reliable performance for electrical and electronic products exposed to rain and water spray conditions.
Product Overview
Designed and manufactured in compliance with IEC60529 Clause 14.2.3 and Clause 14.2.4 Figure 5, this testing equipment is essential for certification agencies and manufacturers conducting waterproof testing on outdoor electrical and electronic products. The system features a robust construction with brass nozzle, movable water baffle, counterweight, pressure gauge, and stainless steel valve components.
Compliance Standards
  • IEC60529 Degrees of protection provided by enclosures (IP Code) Figure 5
  • IEC60598-1 Luminaires - Part 1: General requirements and tests
  • ISO20653 Road Vehicles - Degrees of protection (IP-Code)
  • GB4208, GB7000.1, GB17761 standards
Technical Specifications
Parameter Specification
Model IPX34AS
Control Box Dimensions 870mm * 600mm * 950mm
Spray Nozzle Dimensions 370mm * 115mm * 165mm
Spray Nozzle Diameter 102mm
Number of Holes 121
Hole Diameter Φ0.5mm
Hole Configuration 1 center hole, 2 inner circles of 12 holes at 30° pitch, 4 outer circles of 24 holes at 15° pitch
Water Inlet Diameter Φ16mm
Water Pipe Diameter Φ28mm
Flow Rate 10L/min ±5%
Flow Adjustment Manual adjustment
Water Pressure Range 50-150Kpa
Flow Display Glass flow meter
Water Tank Capacity 150L
Power Supply 220V/50Hz
Installation Requirements
Water Source
User must provide water source with minimum pressure of 0.2Mpa and install 4/8 inch faucet within 2 meters of equipment.
Site Requirements
Level ground, unobstructed drainage, waterproofed surfaces, and provision of floor drain or drainage ditch.
Product Demonstration
View IPX34 Spray Nozzle Testing Equipment Video
Product Image

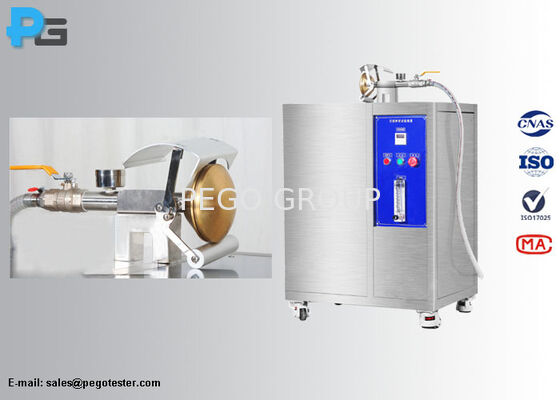

IEC60529 Compliance Brass Nozzle Waterproof Tester with 10L/min Flow Rate for IPX3 and IPX4 Testing Equipment 0
