Programmable Climate Chamber with IEC61010-1 Clause 6.8.2 Compliance and Stainless Steel Construction

Programmable Climate Chamber with IEC61010-1 Clause 6.8.2 Compliance and Stainless Steel Construction
Programmable Climate Chamber with IEC61010-1 Clause 6.8.2 Compliance and Stainless Steel Construction

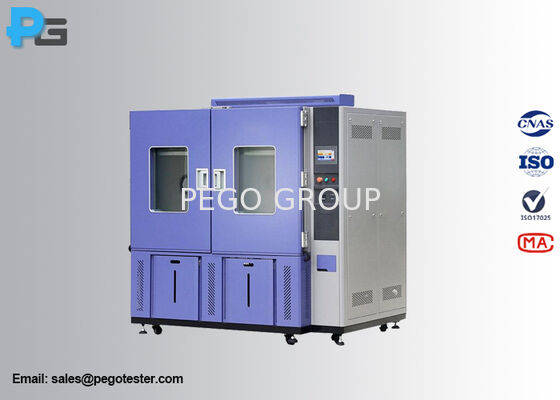

Large Image :  Programmable Climate Chamber with IEC61010-1 Clause 6.8.2 Compliance and Stainless Steel Construction

Product Details:
Place of Origin: China
Brand Name: PEGO
Certification: Third-Lab Calibration Certificate
Model Number: PG-THC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000~USD10000
Packaging Details: carton
Delivery Time: 30 working days
Payment Terms: T/T,Western Union,MoneyGram
Contact Now
Detailed Product Description
Standard: IEC60068-2-1, IEC60068-2-2 And IEC60068-2-3 Material: Stainless Steel
Application: Electronic, Battery, Plastic, Food, Paper, Car, LED Lamps Working Power: 380V/50Hz
Highlight:

Programmable Climate Chamber

,

constant temperature and humidity test chamber

IEC61010-1 Clause 6.8.2 Climate Chamber Programmable Constant High Temperature and Humidity Test Chamber
The programmable constant temperature and humidity test chamber provides comprehensive environmental testing capabilities including constant high and low temperature humidity, and alternating high and low temperature humidity conditions. This advanced testing equipment incorporates multiple integrated systems including refrigeration, heating, humidification/dehumidification/water circulation, air duct circulation, electrical control, and comprehensive safety protection systems.
Compliance Standards
  • AS/NZS3112 Approval and test specification - Plugs and socket-outlets clause 2.13.13.3
  • IEC60884-1 Plugs and socket-outlets for household and similar purposes - Part 1: General requirements clause 13.23
  • IEC60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance clause 5.7,8.9.3.4
  • IEC60598-1 Luminaires - Part 1: General requirements and tests clause 4.13.4
  • IEC61010-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance clause 6.8.2
Technical Specifications
Model 100L 408L 800L 1000L
Working dimension (cm) W40*D50*H50 W60*D80*H85 W100*D80*H100 W100*D100*H100
Temperature and humidity range -40℃~+150℃, -70℃~+150℃/20%~98% R.H.
Accuracy Temperature: ±0.01℃; humidity: ±0.1% R.H.
Fluctuation ±0.5℃/±2.5% R.H.
Temperature Evenness ≤±2.0℃ (at the range of -40℃~+150℃)
Temperature rise speed 45 minutes from 25℃ to 100℃ (under no load condition)
Temperature fall speed 60 minutes from 20℃ to -40℃ (under no load condition)
Temperature rise and fall overshoot ≤2℃
Maximum bearing capacity 50KG
Constant maximum heating load 100W
Noise ≤70dB
Power supply 380V±10%, 50Hz, 3P+N+G
Power consumption 8.5KW
Maximum operating current 40A
Humidification water Resistivity ≥500MΩ
Product Images
Programmable Climate Chamber with IEC61010-1 Clause 6.8.2 Compliance and Stainless Steel Construction 0
