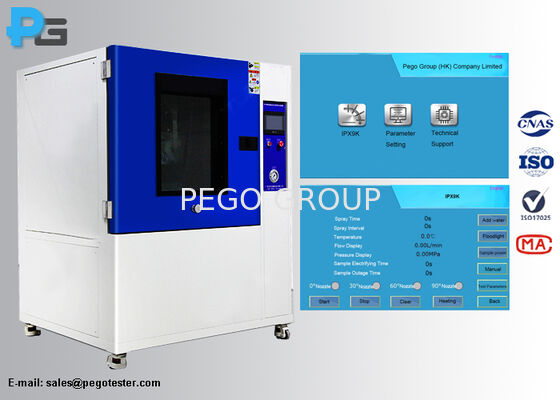

ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts

ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts
ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts
video play

Large Image :  ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts

Product Details:
Place of Origin: China
Brand Name: PEGO GROUP
Certification: Third-Lab Calibration Certificate
Model Number: PG-IP9K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD8000~USD15000
Packaging Details: woodencase
Delivery Time: 30 working days
Payment Terms: Western Union,T/T,MoneyGram,paypal
Contact Now
Detailed Product Description
Standarrd: ISO20653 Figure 8 And 9 Material: SUS304
Type: Test Chamber Working Power: 220V/50Hz
Shippment: By Sea Warranty: 12 Months
Highlight:

ISO20653 Compliance IPX9K Test Chamber

,

High Pressure 8000-10000Kpa Water Ingress Protection Test Chamber

,

SUS304 Stainless Steel Environmental Test Chamber

IPX9K High Pressure and Temperature Water Ingress Protection Test Chamber
ISO20653 compliant test chamber designed for automotive parts protection testing against high-pressure, high-temperature water jets.
Product Overview
The IPX9K test chamber provides the most stringent ingress protection testing for automotive components outside passenger compartments. Compliant with ISO20653 and DIN40050-9 standards, this equipment verifies protection against high-pressure steam jet cleaning through precise fan jet distribution testing.
Key Features
  • High-quality steel construction with stoving varnish coating
  • SUS304 stainless steel chamber interior and support structure
  • 7-inch touch screen with PLC core control for easy operation
  • High-precision stepping motor with adjustable speed and angle
  • IPD temperature control system with touch screen settings
  • Adjustable test duration: 0-999 minutes with auto-stop function
  • Optional communication interface for PC data recording
Technical Specifications
Parameter Specification
Internal Dimensions L1000 * D1000 * H1000mm (customizable)
External Dimensions L1400 * D1180 * H1850mm
Test Time per Position 30 seconds
Jet Angles 0°, 30°, 60°, 90°
Number of Jets 4
Turntable Diameter 400mm
Spray Distance 100-200mm (manual control)
Water Pressure 8000-10000 Kpa
Water Flow Rate 14-16 L/min
Temperature Range Room temperature to 80±5°C
Total Test Time 120 seconds (30s per position)
Rotational Speed 4-10 rpm (adjustable)
Maximum Load Capacity 50kg
Power Supply 380V/50Hz, 10KW
Sample Power 220V
Safety Protection Leakage, water break, short circuit detection
Product Image
ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts 0
Standards Compliance Verification
Parameter ISO20653 Requirement IPX9K Test Chamber
Temperature 80±5°C Room temperature to 80±5°C
Pressure 8000-10000 Kpa 8000-10000 Kpa
Jet Angles 0°, 30°, 60°, 90° 0°, 30°, 60°, 90°
Nozzle Quantity 4 4
Turntable Speed 5±1 rpm 5 rpm
Flow Rate 4-16 L/min 14-16 L/min
Test Duration 30s per angle * 4 positions 30s per position
Schematic Diagrams ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts 1 ISO20653 Compliance IPX9K Test Chamber with High Pressure 8000-10000Kpa and SUS304 Stainless Steel for Auto Parts 2
