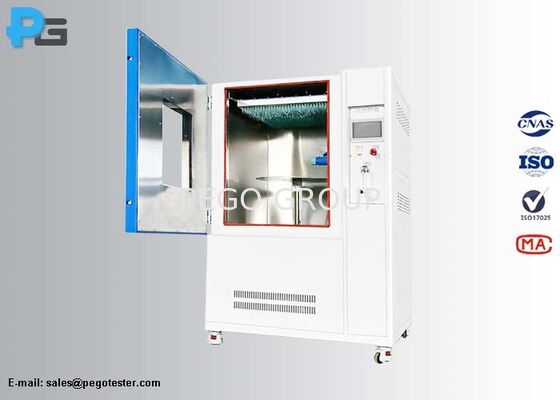

IEC60529 Vertical Rain Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1 IPX2 Testing

IEC60529 Vertical Rain Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1 IPX2 Testing
IEC60529 Vertical Rain Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1 IPX2 Testing

Large Image :  IEC60529 Vertical Rain Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1 IPX2 Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-IPX12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000~USD10000
Packaging Details: woodencase
Delivery Time: 20-30 working days
Payment Terms: T/T
Supply Ability: 50 sets/months
Contact Now
Detailed Product Description
Normative Standard: IEC60529, IEC60598-1 Test IP Grade: IPX1, IPX2
Material Of The Body: SUS304 Stainless Steel Dimension Of Drip Box: 600mm*600mm (square）or Customizable
Delivery Rate: IPX1=1+0.5mm/min, IPX2=3+0.5mm/min Control Units: PLC+touch Screen
Highlight:

IEC60529 Vertical Rain Test Chamber

,

SUS304 Stainless Steel IPX1 IPX2 Test Chamber

,

PLC Touch Screen Control Waterproof Test Chamber

IEC60529 Vertical Rain Test Chamber for IPX1 and IPX2 Testing
The vertical rain test chamber simulates vertically dripping and 15° tilted dripping conditions, designed to meet IEC60529 standards for IPX1 and IPX2 waterproof testing. This integrated chamber system combines drip box, turntable, water supply, and control units for comprehensive testing.
Product Overview
Electrical samples are securely placed on the turntable directly below the drip box. Users input test parameters via the touch screen interface, while the PLC system ensures precise control throughout the testing process. This equipment effectively verifies whether electrical appliances meet IPX1 and IPX2 water resistance performance requirements.
IPX1 Testing: Vertically falling drops shall have no harmful effect. Test duration: 10 minutes, equivalent to 1 mm/minute rainfall.
IPX2 Testing: Vertically dripping water shall have no harmful effect when enclosure is tilted up to 15° from normal position. Test duration: 10 minutes (2.5 minutes in each of 4 fixed tilt positions). Water equivalent to 3 mm/minute.
Key Features
  • Dual-layer structure design with inner box and outer shell
  • High-quality A3 steel outer shell with baked paint finish
  • SUS304 stainless steel wetted components for long-term rust resistance
  • Vacuum-designed rain drip board with brass cone nozzle bases
  • Compressed air drying function to prevent water accumulation and scaling
  • Precision water filtration system to prevent needle clogging
  • Stepping motor turntable with programmable rotation speed and tilt angles
  • Integrated sample power socket with programmable on/off timing
  • Built-in circulating water tank with automatic level control and alarm system
  • LED waterproof lighting and tempered glass observation window
  • 7-inch touch screen with Panasonic PLC control system
  • Pre-programmed IPX1 and IPX2 test procedures
  • Four mobile casters for easy positioning and fixation
Technical Specifications
Model IPX12A-600
Drip Board Size 600mm × 600mm
Inner Box Dimensions 800mm × 800mm × 1000mm
Overall Dimensions 1250mm × 1020mm × 1750mm
Turntable Diameter Φ500mm
Nozzle Aperture Φ0.4mm
Grid Pattern 20mm × 20mm
Delivery Rate IPX1: 1±0.5mm/min, IPX2: 3±0.5mm/min
Turntable Lifting Height 400-700mm
Maximum Load Capacity 50kg
Rotation Speed 1r/min
Tilt Angle 0° or 15° in 4 positions
Test Time Range 0-999 minutes
Protection Devices Electric leakage, water shortage, short circuit protection
Power Requirements AC 220V/50Hz, 1kW
Operating Conditions 5℃-35℃ temperature, ≤85% humidity, 86kPa-106kPa pressure
