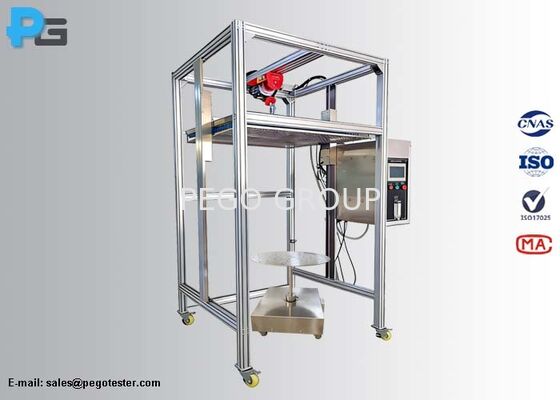

Open-Type IEC60529 Compliance IPX1-2 Water Resistance Testing Equipment with SUS304 Stainless Steel Turntable and Adjustable Drip Box Height

Open-Type IEC60529 Compliance IPX1-2 Water Resistance Testing Equipment with SUS304 Stainless Steel Turntable and Adjustable Drip Box Height
Open-Type IEC60529 Compliance IPX1-2 Water Resistance Testing Equipment with SUS304 Stainless Steel Turntable and Adjustable Drip Box Height

Large Image :  Open-Type IEC60529 Compliance IPX1-2 Water Resistance Testing Equipment with SUS304 Stainless Steel Turntable and Adjustable Drip Box Height

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-IPX12A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000~USD15000
Packaging Details: woodencase
Delivery Time: 20-30 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Normative Standard: IEC60529, IEC60598-1 Test IP Grade: IPX1, IPX2
Material: SUS304 Stainess Steel (turntable), Alumimum (test Frame), Brass (nozzle Base) Dimension Of Drip Box: 1000mm*1000mm, 1200mm*1200mm, 1500mm*1500mm Or Customizable
Delivery Rate: 1~3mm/min (±0.5mm/min) Configuration: Test Frame, Drip Box, Turntable, Control Unit
Highlight:

IEC60529 Compliance Water Resistance Testing Equipment

,

SUS304 Stainless Steel Turntable IPX1-2 Testing Equipment

,

Adjustable Drip Box Height Vertical Rain Drip Box

Open-Type IPX1 and IPX2 Water Resistance Testing Equipment
The IPX1-2 Vertical Rain Drip Box Waterproof Testing Equipment is engineered in compliance with IEC60529 clause 14.2.1 and 14.2.2 standards. This equipment simulates vertical dripping and 15-degree tilted dripping conditions to verify whether electronic products, luminaires, electric components, auto parts, and other devices meet waterproof protection requirements.
This open-type testing equipment offers flexible compatibility, accommodates samples of various sizes without restrictions, and supports live testing capabilities for comprehensive product evaluation.
Equipment Components and Features
  • Drip Box System: Features a 20×20mm matrix arrangement with multiple Φ0.4mm nozzles. The brass nozzle base ensures easy assembly and disassembly. Includes air compressor connection for draining residual water after testing, significantly extending nozzle service life.
  • Turntable Assembly: Constructed from durable SUS304 stainless steel with standard load capacity of ≤50kg (customizable options available). Stepper motor-controlled for consistent 1r/min rotation speed. Equipped with positioning holes for secure sample mounting and 15° tilt capability for IPX2 testing compliance.
  • Control Unit: Integrated touch screen and PLC system for precise test control. Pre-loaded with IPX1 and IPX2 test programs for immediate operation, plus customizable test condition settings for specialized requirements.
  • Adjustable Design: Height-adjustable drip box accommodates samples of varying heights. Mobile test frame with 4-wheel configuration enables flexible on-site deployment and effortless repositioning.
Technical Specifications
Parameter IPX12B-800 IPX12B-1000
Drip Board Size (mm) 800×800 1000×1000
Outer Dimensions (L×W×H mm) 1000×1000×2300 1200×1200×2300
Turntable Diameter Φ500mm Φ600mm
Nozzle Aperture Φ0.4mm
Grid Pattern 20×20mm
Water Delivery Rate 1~3mm/min (±0.5mm/min)
Drip Board Height Adjustment 1000~1800mm (Manual)
Turntable Load Capacity 50KG Maximum
Turntable Rotation Speed 1r/min
Turntable Tilt Positions 0° or 15° in 4 positions
Test Duration 0~999 minutes
Protection Systems Electric leakage, water shortage, short circuit
Power Requirements AC 220V/50Hz, 1KW (Live + Neutral + Ground)
Operating Conditions Temperature: 5℃~35℃, Humidity: ≤85% RH, Pressure: 86kPa~106kPa
