IEC60884-1 Compliant IK Pendulum Impact Tester with Stainless Steel Construction and Adjustable Impact Angle

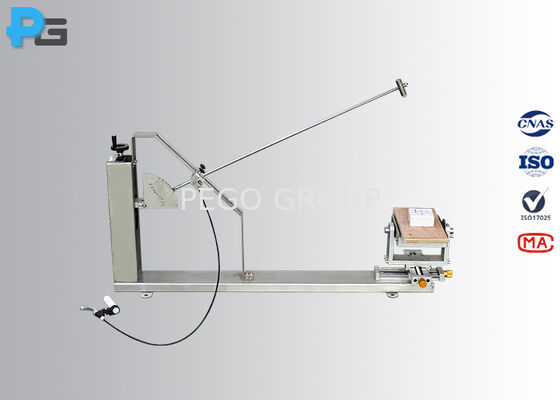

Large Image : IEC60884-1 Compliant IK Pendulum Impact Tester with Stainless Steel Construction and Adjustable Impact Angle

Product Details:

Place of Origin:	China
Brand Name:	Pego Tester
Certification:	Third-lab calibration certificate
Model Number:	IK-PD06

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD3400-USD5500/set
Packaging Details:	Each packed in a wooden case
Delivery Time:	25 working days
Payment Terms:	T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

Standard:	IEC60884-1, IEC60068-2-75	Application:	Lab
Material:	Stainless Steel	Impact Energy:	0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J
H.S. Code:	9024800000	Warranty:	12 Months
Highlight:	IEC60884-1 Compliant IK Pendulum Impact Tester , Stainless Steel Construction IK Pendulum Impact Tester , Adjustable Impact Angle Mechanical Impact Test Equipment

IEC60884-1 Compliant IK Pendulum Impact Tester with Stainless Steel Construction and Adjustable Impact Angle

IK Pendulum Impact Test Device for IK01 to IK06 Conforms to IEC60884-1

Introduction

The IK01 to IK06 pendulum impact device is engineered in compliance with GB2099.1-2008, IEC60884-1 figure 22-26, GB2423, and IEC60068-2-75 standards. This precision instrument is designed for mechanical impact testing on sheet metal applications. The mounting bracket features adjustable positioning with left-to-right movement capability and variable impact angle settings. This device is specifically calibrated for low energy impact testing up to 2J.

Specifications

Swing Pipe: 1000mm (L) × 9mm (outer diameter) × 0.5mm (thickness), 100±1g (mass)
Mounting Bracket: 10±1kg, adjustable X and Y axis, ±900 rotation capability

Striking Elements Characteristics

Energy/J	≤1 ±10%	2±5%	5±5%	10±5%	20±5%	50±5%
Equivalent mass±2%kg	0.25(0.2)	0.5	1.7	5	5	10
Material	Nylon		Steel
R/mm	10	25	25	50	50	50
D/mm	18.5(20)	35	60	80	100	125
f/mm	6.2(10)	7	10	20	20	25
r/mm	-	-	6	-	10	17
l/mm	Depends

Fall Height Specifications

Energy/J	0.14	0.2	(0.3)	0.35	(0.4)	0.5	0.7	1	2	5	10	20	50
Equivalent mass/kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0.5	1.7	5	10
Fall height±1%mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500

Degrees of Protection Against External Mechanical Impacts

IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
0.14J	0.2J	0.35J	0.5J	0.7J	1J	2J	5J	10J	20J
