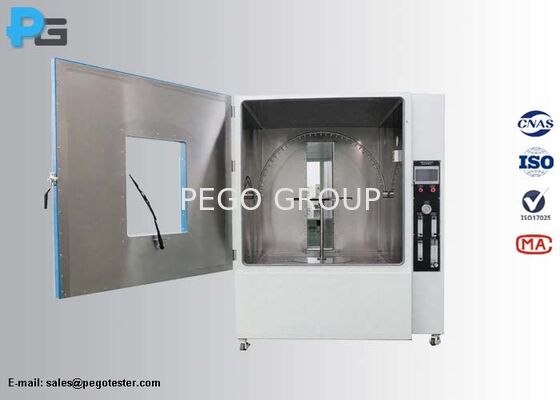

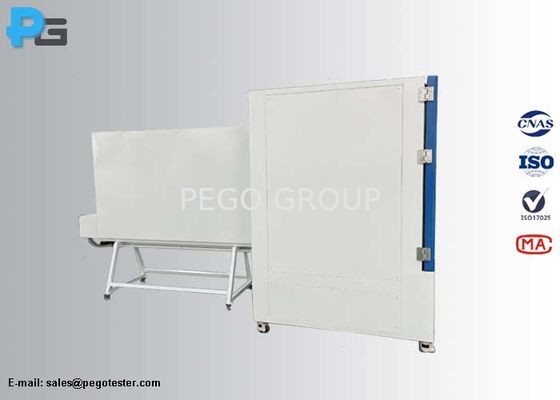

IEC60529 Compliance Water Resistance Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1-6 Testing

IEC60529 Compliance Water Resistance Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1-6 Testing
IEC60529 Compliance Water Resistance Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1-6 Testing IEC60529 Compliance Water Resistance Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1-6 Testing

Large Image :  IEC60529 Compliance Water Resistance Test Chamber with SUS304 Stainless Steel and PLC Touch Screen Control for IPX1-6 Testing

Product Details:
Place of Origin: China
Brand Name: Pego Electronics
Certification: CNAS Calibration Certificate
Model Number: PG-IPX16B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000~USD20000
Packaging Details: woodencase
Delivery Time: 20-30 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Conform To: IEC60529 Test IP Grade: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6
Configuration: Drip Box, Oscillating Tube, Jet Nozzles Control Units: PLC+touch Screen
Material: SUS304 Stainless Steel Water Recyle: Yes
Highlight:

IEC60529 Compliance Water Resistance Test Chamber

,

SUS304 Stainless Steel IPX Test Chamber

,

PLC Touch Screen Control Waterproof Test Chamber

Water Resistance Test Chamber for IPX1-IPX6 Verification
Comprehensive testing solution for IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 waterproof ratings according to IEC60529 standards. This chamber simulates various water exposure conditions including vertical drops, spraying, splashing, and powerful water jets for electronic products, lighting fixtures, electrical components, motors, and household appliances.
Advanced Construction & Control System
Built with SUS304 stainless steel inner chamber and turntable (1.2mm thickness) for superior water resistance. The outer casing features high-quality steel with protective paint coating. The system is controlled by Panasonic PLC with a 7-inch touch screen interface for easy operation and precise test management.
Key Features
  • Complete IPX1-IPX6 waterproof testing capabilities
  • SUS304 stainless steel inner construction prevents rust and corrosion
  • Servo motor-driven oscillating tube with precise speed and angle adjustment
  • Integrated water filtration system prevents nozzle blockage
  • Vacuum-designed drip box with compressed air drying function
  • Stepper motor-controlled jet nozzles for comprehensive surface coverage
  • Programmable turntable with forward/reverse rotation for live testing
  • Built-in water tank with recycling system and level control
  • Toughened glass observation window with LED lighting
  • Pre-programmed test procedures for all IPX levels
Technical Specifications
Model IPX16B
Control System 7 inch touch screen + PLC
Inner Chamber Dimensions 1300×1300×1450mm (W×D×H)
Turntable Capacity Ø600mm, 50KG bearing capacity
Power Requirements 380V/50Hz (3 phase 4 wires + protective ground)
Test Time Range 0-999 minutes
Weight Approximately 380KG
Testing Capabilities by IP Level
IPX1-2 Drip Testing: 800×800mm drip board, Φ0.4mm nozzles, 20×20mm spacing
IPX3-4 Spray Testing: R600 oscillating tube, ±120° to ±350° angle range
IPX5-6 Jet Testing: Φ6.3mm (IPX5) and Φ12.5mm (IPX6) nozzles, 2.5m test distance
Compliance & Standards
Meets IEC60529:1989+A1:1999, GB4208-2008, and GB7000.1 standards for IPX1 through IPX6 testing. Suitable for operation in environments of 5℃~35℃ temperature, ≤85% relative humidity, and 86kPa~106kPa pressure.
