IEC62262 Compliant 2J Energy Value Spring Hammer with 500g Equivalent Mass for IK07 Impact Test Equipment

IEC62262 Compliant 2J Energy Value Spring Hammer with 500g Equivalent Mass for IK07 Impact Test Equipment
IEC62262 Compliant 2J Energy Value Spring Hammer with 500g Equivalent Mass for IK07 Impact Test Equipment
video play

Large Image :  IEC62262 Compliant 2J Energy Value Spring Hammer with 500g Equivalent Mass for IK07 Impact Test Equipment

Product Details:
Place of Origin: China
Brand Name: PEGO
Certification: Third-lab Calibration Certificate
Model Number: IK-SH07
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD260-USD350
Packaging Details: Each packed in a aluminum box, then in carton box
Delivery Time: In stock
Payment Terms: T/T,Western Union,MoneyGram
Contact Now
Detailed Product Description
Standard: IEC60068-2-75, IEC62262, IEC884, UL1244 IK Rating: IK07
Energy Value: 2J Warranty: 12 Months
Release Pressure: <10N Weight: 1500g
Shipping Method: By DHL, UPS, FedEx, Or TNT Equivalent Mass: 500g
Highlight:

500g Equivalent Mass Spring Hammer

,

2J Energy Value Impact Test Equipment

,

IEC62262 Compliant IK07 Impact Tester

Single Spring Hammer Impact Test Equipment 500g Equivalent Mass For IK07 Impact Test
IEC62262 2J Single Spring Hammer with 500g Equivalent Mass for IK07 Impact Test
Product Introduction

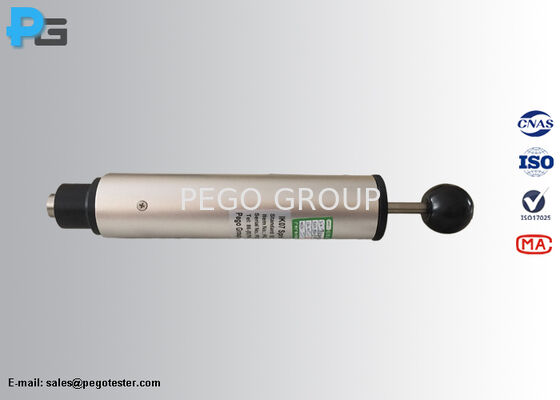

The spring hammer consists of three principal components: the body, the striking element, and the release system. Designed in compliance with IEC60068-2-75, IEC62262, IEC884, and UL1244 standards, this equipment features a striking element comprising the hammer head, hammer shaft, and cocking knob. The assembly mass is precisely 500g for 2J impact energy. The release pressure required to activate the striking element does not exceed 10N.
IK Rating Protection Levels
IK Rating Impact Energy
IK01 0.14J
IK02 0.2J
IK03 0.35J
IK04 0.5J
IK05 0.7J
IK06 1J
IK07 2J
IK08 5J
IK09 10J
IK10 20J
Technical Parameters
Parameter Specification
Item Number IK-SH07
Energy Value 2J
Equivalent Mass 500g ±5g
Release Pressure <10N
Total Weight 1500g ±10g
Release Head Configuration
IEC62262 Compliant 2J Energy Value Spring Hammer with 500g Equivalent Mass for IK07 Impact Test Equipment 0
