SUS304 Stainless Steel High Pressure Jetproof Test Chamber with IEC60529 ISO20653 Compliance and 8000-10000 Kpa Pressure

IEC60529 / ISO20653 High Temperature High Pressure Jetproof Test Chamber for IPX5 IPX6 IPX9K

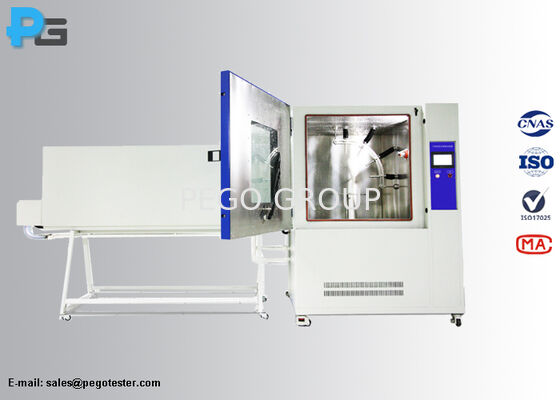

The IPX69K high temperature and high pressure jet spray test chamber is designed according to IEC60529, DIN40050-9 figure 7 and ISO20653 figure 8 and 9 standards. This equipment performs IPX5, IPX6, IPX6K and IPX9K testing with user-defined parameters via a 7-inch LCD touch screen and automated PLC control. Constructed with stainless steel nozzles, turntable, and inner box, it includes built-in waterproof sockets for live testing applications.

Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.

• Test duration: at least 15 minutes
• Volume: 12.5 litres per minute
• Pressure: 30 kPa at distance of 3 m

Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.

• Test duration: at least 3 minutes
• Volume: 100 litres per minute
• Pressure: 100 kPa at distance of 3 m

Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction, under elevated pressure, shall have no harmful effects.

• Test duration: at least 3 minutes
• Water volume: 75 litres per minute
• Pressure: 1000 kPa at distance of 3 m

Water projected in high pressure high temperature against the enclosure from 4 directions (00, 300, 600, 900) shall have no harmful effects.

• Test duration: 30s per direction
• Water volume: 14~16 litres per minute
• Pressure: 8000~10000 Kpa
• Temperature: 80±5℃
• Test distance: 100 to 150mm

• High-quality steel plate with stoving varnish coating
• Chamber inner and support made by SUS304# stainless steel
• 7-inch touch screen and PLC core control component for easy operation and automated control
• High quality stepping motor with speed and angle adjustment via touch screen
• IPD temperature control with touch screen setting
• Test time: 0-999min adjustment with auto stop function
• Comprehensive protection: leakage, water shortage, overflow, short circuit, and door induction protection
• Built-in water tank with water recycling capability
• Ball valve water level control with low water level alarm
• Transparent observation window with tempered glass and LED lighting for test monitoring

This test chamber is applied to electrical equipment in road vehicles, motors, electric components and auto parts for waterproof testing. After testing, users can evaluate if product performance meets requirements and proceed with redesign and improvement as needed.
