| Standard: | IEC(EN) 60350-2 Figure 4 | Material: | Low Carbon Steel |
|---|---|---|---|
| Warranty: | 12 Months | Dimension: | 145mm, 180mm, 220mm |
| High Light: | IEC Induction Cooker Vessels,145mm Induction Cooker Vessels,IEC60350-2 Carbon Steel Cooker Vessels |
||
IEC60350-2 Low Carbon Steel Standard Cooking Test Vessels with Lids
1. Introduction
1) The vessels is strictly designed according to IEC/EN60350-2 Figure 4.
2) The vessels is made of low carbon steel having a maximum carbon content of 0.08%.
3) The maximum concavity of the base of the vessel is to be not more than 0.006a.
4) The lid is adapted to accommodate a stirrer.
5) The base of the saucepan shall not to be convex
2. Specification:
|
Diameter of Cooking Zone mm |
Dimensions of the Vessel | ||
| a | b | c | |
| ≤145 | 145 | 140 | 3 |
| >145≤180 | 180 | 140 | ≧3≤5 |
| >180≤220 | 220 | 140 | ≧3≤5 |

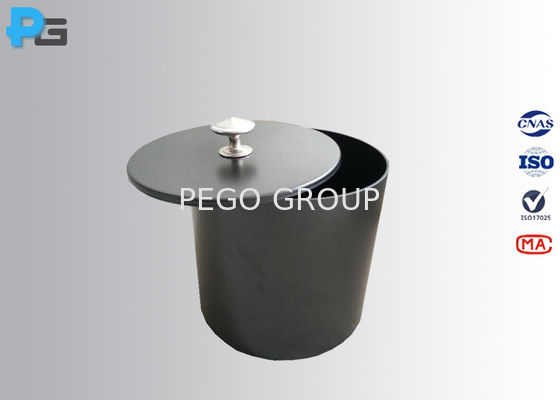

3. Picture:
