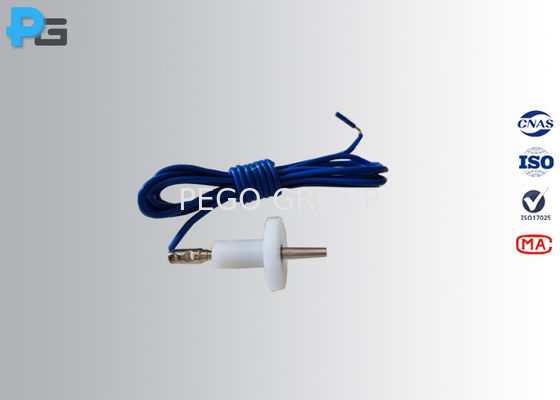

Test Probe 13 Conincal Pin Conforms to IEC61032 Accessability Test Finger Probe
Introduction:
It is designed according to IEC61032 figure 9. The pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).
Specification:
diameter of test pin | head 3mm, bottom 4mm |
length of test pin | 15mm |
diameter of baffle | 25mm |
thickness of baffle | 4mm |
material | insulating material, metal |
Picture:
Probe List:
Probes and application | Probe code | Short description | Force to be applied |
Access probes of IEC60529 (IP code) | Probe A | Sphere:Φ50 with handle | 50 |
Probe B | Jointed test finger | 10 | |
Probe C | Rod: Φ2.5-length 100 | 3 | |
Probe D | Wire: Φ1.0-length 100 | 1 | |
Object probes of IEC60529 (IP code) | Probe 1 | Sphere: Φ50 | 50 |
Probe 2 | Sphere: Φ12.5 | 30 | |
Other access probes Persons against access to hazardous live parts or hazardous mechanical parts |
Probe 11 | Unjointed test finger | 50 |
Probe 12 | Cylindrical pin: Φ4-length 50 | ||
Probe 13 | Conincal pin: Φ3 to 4-length 15 | ||
Probe 14 | Bar: 3*1 | 20 | |
Probe 15 | Deleted | ||
Probe 16 | Deleted | ||
Probe 17 | Wire: Φ0.5 | ||
Probe 18 | Small finger probe: Φ8.6-length 57.9 | 10 | |
Probe 19 | Small finger probe: Φ5.6-length 44 | 10 | |
Other access probes Persons against access to hazardous mechanical parts |
Probe 31 | Cone: Φ110/60 | 50 |
Probe 32 | Rod: Φ 25 | 30 | |
Probe 33 | Delected | ||
Other access probes Persons against access to hot or glowing parts |
Probe 41 | Probe: Φ 30 | |
Probe 42 | Deleted | ||
Probe 43 | Bar: 50*5 |
