Nylon Material Iec 61032 Test Probe Against Access To Hazardous Mechanical Parts

Nylon Material Iec 61032 Test Probe Against Access To Hazardous Mechanical Parts
Nylon Material Iec 61032 Test Probe Against Access To Hazardous Mechanical Parts

Large Image :  Nylon Material Iec 61032 Test Probe Against Access To Hazardous Mechanical Parts

Product Details:
Place of Origin: China
Brand Name: PEGO
Certification: Third-lab Calibration Certificate
Model Number: PG-TP31
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD450-600/set
Packaging Details: carton box
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Standard: IEC61032 Figure 14 Material: Nylon
Shippment: By Express Description: Cone: Φ110/60
Highlight:

ul articulated finger probe

,

finger probe test

IEC61032 Test Probe 31 Test Cone Made by Nylon Third - Lab Calibration Certificate Available



Introduction:

It is designed according to IEC61032 figure 14, this probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.



Specification:

diameter of probe 25mm
Length of probe 80mm
Diameter of front baffle 60mm
Diameter of bottom baffle 110mm
Total length of probe and baffle 150mm
Material nylon

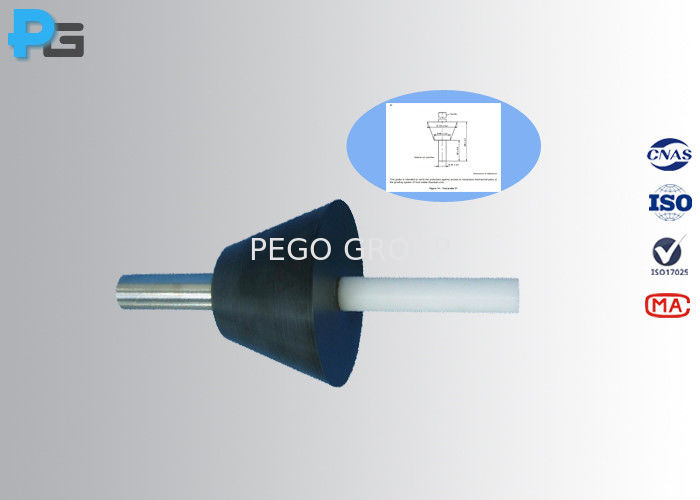

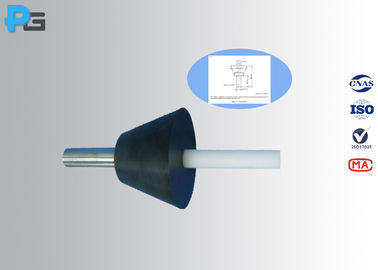

Picture:

Nylon Material Iec 61032 Test Probe Against Access To Hazardous Mechanical Parts 0



Probe List:

Probes and application Probe code Short description Force to be applied
Access probes of IEC60529 (IP code) Probe A Sphere:Φ50 with handle 50
Probe B Jointed test finger 10
Probe C Rod: Φ2.5-length 100 3
Probe D Wire: Φ1.0-length 100 1
Object probes of IEC60529 (IP code) Probe 1 Sphere: Φ50 50
Probe 2 Sphere: Φ12.5 30

Other access probes

Persons against access to hazardous live parts or hazardous mechanical parts

 Probe 11 Unjointed test finger 50
Probe 12 Cylindrical pin: Φ4-length 50
Probe 13 Conincal pin: Φ3 to 4-length 15
Probe 14 Bar: 3*1 20
Probe 15 Deleted
Probe 16 Deleted
Probe 17 Wire: Φ0.5
Probe 18 Small finger probe: Φ8.6-length 57.9 10
Probe 19 Small finger probe: Φ5.6-length 44 10

Other access probes

Persons against access to hazardous mechanical parts

 Probe 31 Cone: Φ110/60 50
Probe 32 Rod: Φ 25 30
Probe 33 Delected

Other access probes

Persons against access to hot or glowing parts

 Probe 41 Probe: Φ 30
Probe 42 Deleted
Probe 43 Bar: 50*5
