| Standard: | IEC60065 Figure 9 | Material: | Metal |
|---|---|---|---|
| Shippment: | By Express | Condition: | New |
| Highlight: | ul articulated finger probe,ul test finger |
||

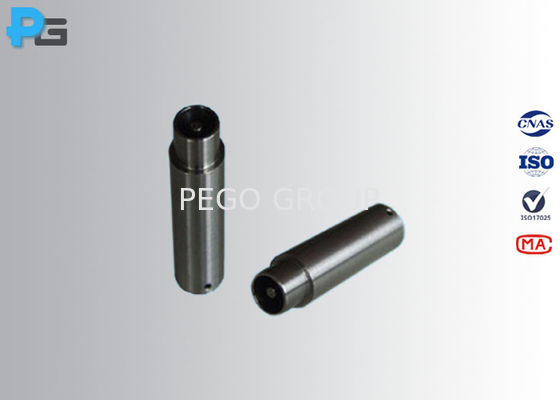

IEC60065 Test plug for Antenna Coaxial Socket with Third-Lab Calibration Certificate
1. Introduction
The test plug is designed according to IEC60065 figure 9, it is applied to test the antenna coaxial socket of live parts, and it should endure the mechanical strength during the endurance test, impact test, torque test and etc.
2. Specification
● Length j: 43±0.4mm
● Length g: 40±0.4mm
● Depth d: 9.1mm
● Depth e: 7.112mm
● Depth f: 0.8±0.4mm
● Outer diameter h: 12±0.4mm
● Outer diameter a: 9.576mm
● Outer diameter b: 8.05mm
● Shaft diameter c: 2.438mm
● Radius K: 0.3mm
● Hole Diameter: 1.5mm
● Material: steel
● Standard: IEC60065-2005 figure 9, GB8898-2011 figure 9
Picture:
