Output Voltage: | 0~5KV (AC) | Leakage Current: | 0.10~12.00mA |
---|---|---|---|
Test Resistance: | 1~1000MΩ | Working Power: | AC 220V±10% 50Hz/60Hz |
Condition: | New | Shippment: | By Express Or Air |
Highlight: | hipot test equipment,electric test meter |
Insulation Resistance and Withstand Voltage Tester 2 in 1 Eletrical Safety Test Equipment
Introduction:
Insulation and withstand voltage tester is a kind of electric safety test equipment, widely used in the fields of transformer, equipment, components and etc. to test the performance of insulation and withstand voltage. The equipment can give an alarm at current and resistance, and have 5 groups memories.
Parameter:
Model | RK7112 | RK7110 | RK7122 | RK7120 |
Test voltage | AC:0~5KV | AC:0-5KV, DC:0~6KV | ||
Accuracy | ±(2%SV+5V) | |||
Leakage current | AC:0.10~12.00mA | AC:0.10~12.00mA, DC:010~5.00mA | ||
Accuracy | ±(2%SV+1 count) | |||
Output Voltage | DC:0.10~1.00kV | |||
Accuracy | ±(2%SV+1 count) | |||
Test resistance | 1~1000MΩ | NONE | 1~1000MΩ | NONE |
Accuracy |
±(5%reading+2counts) DC: voltage≥500V ±(7%reading+2counts) DC: voltage<500V |
|||
Test time | 0.2~999.9s | |||
Output frequency | 50Hz/60Hz (optional) | |||
Input characteristics | Single phase 47~63Hz, 115V/230V AC±15% (optional) | |||
Front Panel | Input: Test/Reset; Output: pass/fail/test/process | |||
Memory groups | 5 groups | |||
Dimension | 390*280*90mm | |||
Weight | 9KG | |||
With RS232/PLC port | No | Yes | No | Yes |

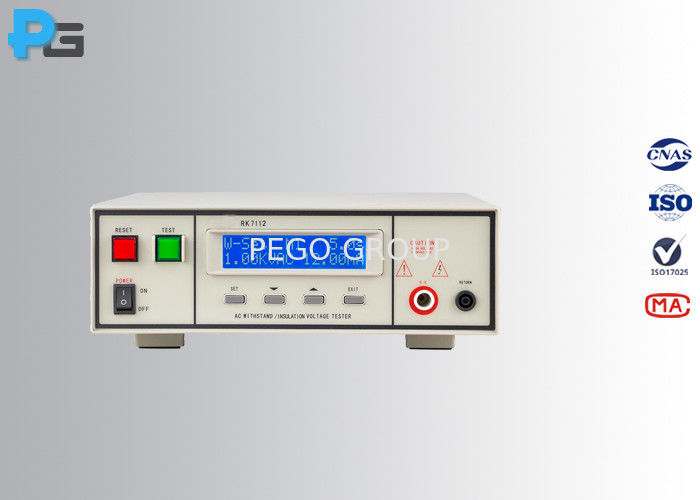

Picture:
Notice: if you have any specical requirement, please write down output voltage and leakage current you want, we accept custom.
