| Standard: | BS1363 Figure 2a And 2b | Material: | Stainless Steel |
|---|---|---|---|
| Shipppment: | By Express | Warranty: | 12months |
| Highlight: | electrical plug tester,torque testing equipment |
||

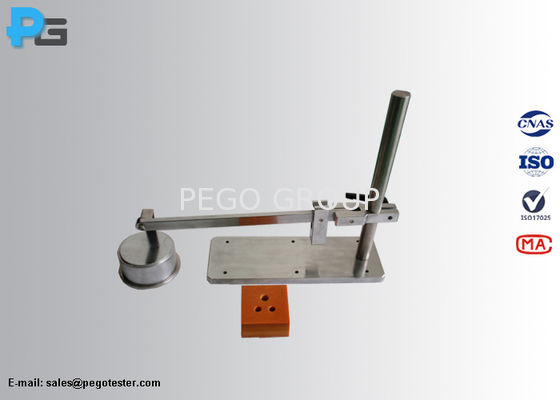

BS1363 Figure 2 Test apparatus with Hardwood Block for Mechanical Strength Test on Resilient Covers
| Standard Number | Description | Figure number | QTY |
| BS1363-1 | Test pin | BS1363-1:1995 figure 1 | 1 |
| BS1363-1 | Apparatus for mechanical strength test on resilient covers | BS1363-1:1995 figure 2a | 1 |
| BS1363-1 | Hardwood block for Figure 2a | BS1363-1:1995 figure 2b | 1 |
| BS1363-1 | Gauge for plug pins | BS1363-1:1995 figure 5 | 1 |
| BS1363-1 | Apparatus for testing plug cover fixing screws | BS1363-1:1995 figure 6 | 1 |
| BS1363-1 | BS1363-1:1995 figure 7 | 1 | |
| BS1363-1 | Plug pin deflection test apparatus for resilient adaptors | BS1363-1:1995 figure 8 | 1 |
| BS1363-1 | Apparatus for abrasion test on insulating sleeves of plug pins | BS1363-1:1995 figure 9 | 1 |
| BS1363-1 | Apparatus for pressure test at high temperatures | BS1363-1:1995 figure 10 | 1 |
| BS1363-2 | Go gauge for socket-outlet | BS1363-2:1995 figure 11 | 2 |
| BS1363-2 | Contact test gauge | BS1363-2:1995 figure 12 | 1 |
| BS1363-2 | Test apparatus and circuit for use with contact and non-contact testgauges | BS1363-2:1995 figure 13 | 1 |
| BS1363-2 | Non-contact test gauge | BS1363-2:1995 figure 14 | 1 |
| BS1363-2 | Turning moment gauge | BS1363-2:1995 figure 15 | 1 |
| BS1363-2 | Withdrawal pull gauges for effectiveness of contact | BS1363-2:1995 figure 16 | 2 |
| BS1363-2 | Test apparatus for temperature rise test | BS1363-2:1995 figure 17a | 1 |
| BS1363-2 | Dummy front plate for temperature-rise test | BS1363-2:1995 figure 17b | 1 |
| BS1363-2 | Apparatus for flexing test | BS1363-2:1995 figure 18 | 1 |
| BS1363-2 | Solid link for test on fuse clips | BS1363-2:1995 figure 19 | 1 |
| BS1363-2 | Tumbling barrel | BS1363-2:1995 figure 20 | 1 |
| BS1363-2 | Pendulum impact test | BS1363-2:1995 figure 21 | 1 |
| BS1363-2 | Apparatus for pressure test | BS1363-2:1995 figure 23 | 1 |
| BS1363-2 | Apparatus for ball pressure test | BS1363-2:1995 figure 24 | 1 |
| BS1363-2 | Calibration jig for calibrate link | BS1363-2:1995 figure 29 | 1 |
| BS1363-2 | Test plug for temperature rising | BS1363-2:1995 figure 30 | 1 |
| BS1363-2 | Apparatus for tests on adaptor pins | BS1363-2:1995 figure 32 | 1 |
| BS1363-2 | Apparatus for torsion test on pins | BS1363-2:1995 figure 33 | 1 |
| BS1363-3 | Solid links for test on fuse clips | BS1363-3:1995 figure 38 | 1 |
The test apparatus and test gauges are strictly designed according to BS1363, please send the figure number when you make an inquiry. All the test gauges and test apparatus can pass the third-lab calibrate and get the relevant caliration report. The test gauges and test apparatus are made by high quality steel with rustless and the rockwell hardness can reach HR580 above, the service life is more than 3-5 times longer than ordinary gauges.
