|Reference:||GB21456 Annex A||Material:||Q235 Steel Having A Maximum Carbon Contents Of 0.08%|
|Size:||140mm, 200mm, 220mm, 280mm||Usage:||To Test Energy Efficiency Of Household Induction Cookers|
PG CSV Induction Cooker Vessels,
Q235 Steel Induction Cooker Vessels,
GB21456 Carbon Steel Vessels

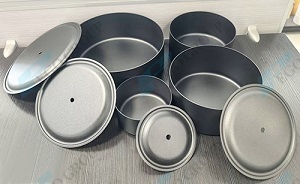

PG - CSV Electrical Test Instruments Low Carbon Steel Vessels Meet the Requirements of GB21456 Annex A
GB21456-2014 Annex A
The standard pan is designed according to annex A, GB21456-2014, it is applied to evaluate the energy efficiency and energy efficiency grades. The pan and the lid are made of Q235 having a maximum carbon content of 0.08%, and the thickness of the lid (t) is 1mm, the bottom of the pan can not convex outward, and the maximum concavity at the bottom is 0.6% times the effective diameter. The surface of the pan and the lid should be smooth and polished to prevent rust.
1) The vessels are made of Q235, having a maximum carbon content of 0.08%
2) Vessels' body and the cover surface should be smoothly, and sand rust surface treatment.
3) Thickness of the cover is 1mm, body thickness “t” of the vessel please check the figures
4) The base of the vessel shall not be convex. The concavity of be base of the vessel shall not exceed 0.006d.
|Size of vessels|
|Size of lids|
