200MHz 7 Inch TFT LCD Digital Oscilloscope 2 Channel With Screen Protect Function

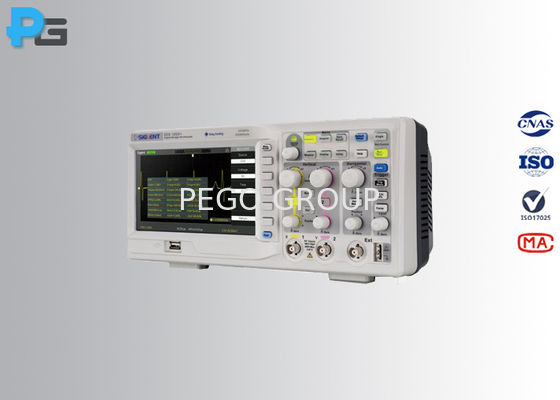

Large Image : 200MHz 7 Inch TFT LCD Digital Oscilloscope 2 Channel With Screen Protect Function

Product Details:

Place of Origin:	China
Brand Name:	SIGLENT
Certification:	Calibration Certificate
Model Number:	SDS1202F

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD600-USD5000/set
Packaging Details:	wooden case or carton box
Delivery Time:	15 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Bandwidth:

200MHz

Channel:

Sample Rate:

500MSa/s

Memory Depth:

32KPts

Highlight:

electrical testing instruments

electric test meter

200MHz 7 inch TFT - LCD Digital Oscilloscope with 2 Channel and Screen Protect Function

1. Specifications of Digital Oscilloscope:

1.1 Five trigger function, Edge, pulse width, slope, video, alternating

1.2 Five arithmetical operation: +,-,*,/,FFT

1.3 6 hardware frequency meter real-time count display

1.4 Screen protect function

1.5 7 inch TFT-LCD display, resolution 800*480

2. Parameters of Digital Oscilloscope:

Bandwidth	200MHz
Channel	2
Sample rate	500MSa/s
Memory depth	32KPts
Trigger type	Edge, pulse width, slope, video, alternating
Port	USB Host, USB Device, Pass/fail/LAN
Screen	7 inch TFT-LCD display, resolution 800*480
Input voltage	1MΩ≦400VPK(DC+peakAC≦10KHz)
Dimension	(LWH)323.1mm135.6mm157mm
Weight	2.5kg

3. Maximum Memory Depth reaches 1Mpts

200MHz 7 Inch TFT LCD Digital Oscilloscope 2 Channel With Screen Protect Function 0
