Stainless Steel Electrical Plug Tester Abrasion Test On Insulating Sleeves Of Plug Pin

Stainless Steel Electrical Plug Tester Abrasion Test On Insulating Sleeves Of Plug Pin
Stainless Steel Electrical Plug Tester Abrasion Test On Insulating Sleeves Of Plug Pin Stainless Steel Electrical Plug Tester Abrasion Test On Insulating Sleeves Of Plug Pin

Large Image :  Stainless Steel Electrical Plug Tester Abrasion Test On Insulating Sleeves Of Plug Pin

Product Details:
Place of Origin: China
Brand Name: Pego Tester
Certification: Third-Lab Calibration Certificate
Model Number: PG-ATA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000~USD1200
Packaging Details: carton
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Detailed Product Description
Standard: IEC60884-1 Application: Plug Socket Tester
Material: Stainless Steel Figure No.: 28
Condition: New Product Name: Apparatus For Abrasion Test On Insulating Sleeves Of Plug Pin
High Light:

electrical plug tester

,

torque testing equipment

IEC60884-1 Figure 28 Plug Socket Tester Apparatus for Abrasion Test on Insulating Sleeves of Plug Pin



1. Introduction of Apparatus for Abrasion Test on Insulating Sleeves of Plug Pin:

Apparatus for abrasion test on insulating sleeve of plug pin is designed according to IEC60884-1 figure 28 and BS1363 figure 9, it is applied to test abrasion resistance performance of insulating sleeves of plug pin. The test apparatus is consisted by horizontally placed beam and a linear motion clamp, the U sharp steel wire with diameter of 1mm is vertically fixed at the end of the horizontal beam, the U-shaped bottom edge of the wire is 6mm linear working part, press the U-shaped wire 6mm straight bottom edge on the bolt insulation sleeve, the motor drives the clamp with the pin to back and forth, so that the wire and the insulating sleeves of plug pin to do the abrasion test. After the test,the plug pin shall be free from damage that may affect safety or affect future use, especially the insulating sleeves can not worn or wrinkled.



2. Parameter of Apparatus for Abrasion Test on Insulating Sleeves of Plug Pin:

Working station 1
Working times 1~999999 (presettable)
Abrasion frequency 30 times/min, back and forth count as 1 time
Pressure load 4N
Travelling 9mm, about 7mm is abrasion insulating sleeve
Abrasion steel wire Φ1mm, effective length 6mm

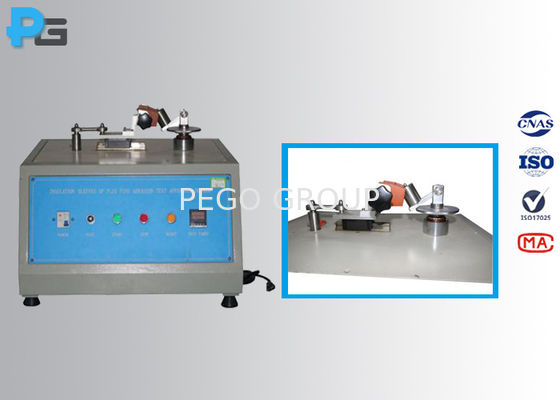

3. Pictures of Apparatus for Abrasion Test on Insulating Sleeves of Plug Pin:

 Stainless Steel Electrical Plug Tester Abrasion Test On Insulating Sleeves Of Plug Pin 0

4. FAQ

1). What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment



2). Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.



3). We need some other plugs which is not in your list, can you make them?

Answer: Yes, the adapaters can customized according to the buyer's demands.



5.  Competitve Advantage

1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.

2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.

3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.

6). Prompt Response to Customers: we promise to reply our customers within 24 hours
