| Standard: | IEC60884-1 | Application: | Plug Socket Tester |
|---|---|---|---|
| Material: | Stainless Steel | Figure No.: | 40 |
| Condition: | New | Product Name: | Apparatus For Testing Resistance To Abnormal Heat Of Insulating Sleeves |
| High Light: | electrical plug tester,torque testing equipment |
||
IEC60884-1 Figure 40 Plug Socket Tester Apparatus for Testing Resistance to Abnormal Heat of Insulating Sleeves
1. Introduction of Apparatus for Testing Resistance to Abnormal Heat of Insulating Sleeves:
Apparatus for testing resistance to abnormal heat of insulating sleeves is designed according to IEC6884-1 figure 40, it is applied to test heat and flame resistance performance of insulating sleeves
2. Parameter of Apparatus for Testing Resistance to Abnormal Heat of Insulating Sleeves:
| Insulating plate |
5mm thickness, flat surface Made by Bakelite or epoxy board diameter twice the maximum permissible dimension of the engagement face of the plug |
| Metal part B |
Length ＞ 20mm Material: brass Equip with 6A 2-pins, 10A 3-pins, 16A 3-pins |
| Gap between insulating plate and metal part B | 3±0.2mm, ensure air convection around the pins |
| Distance between thermocouple and positive side of metal part B | 7±0.5mm |
| Thermocouple | K type, with digital temperature meter |

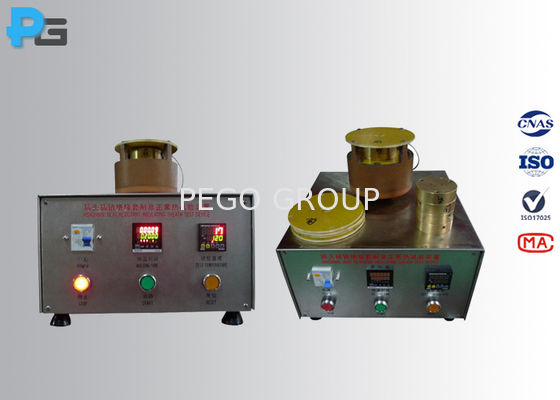

3. Picture of Apparatus for Testing Resistance to Abnormal Heat of Insulating Sleeves:
4. FAQ
1). What is the warranty period of the equipment?
Answer: the equipment warranty is 12 months upon you receipt of the equipment
2). Can you provide third-lab calibration certificate?
Answer: Yes, the equipment can send to the third-labs authorized by ISO17025 and get the calibration certificate, but the buyer should undertake the charges.
3). We need some other plugs which is not in your list, can you make them?
Answer: Yes, the adapaters can customized according to the buyer's demands.
5. Competitve Advantage
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
