Reference: | IEC60529, IEC61032, UL507, UL1278 | Product Name: | IEC Test Finger |
---|---|---|---|
Material: | Steel And Plastic | Lead Time: | In Stock |
Highlight: | ul articulated finger probe,finger probe test |

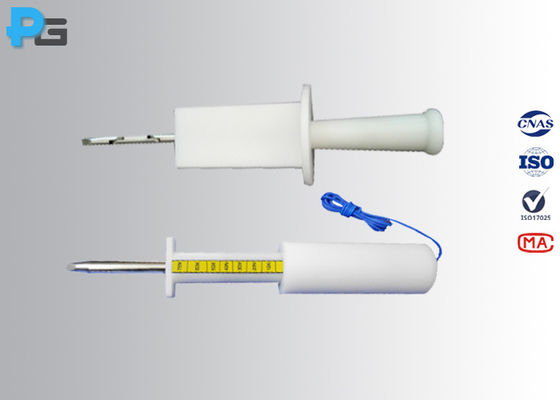

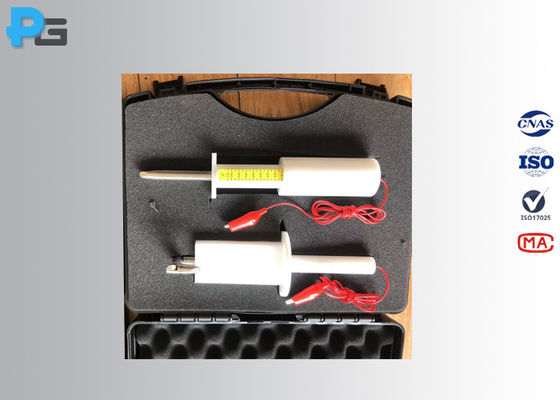

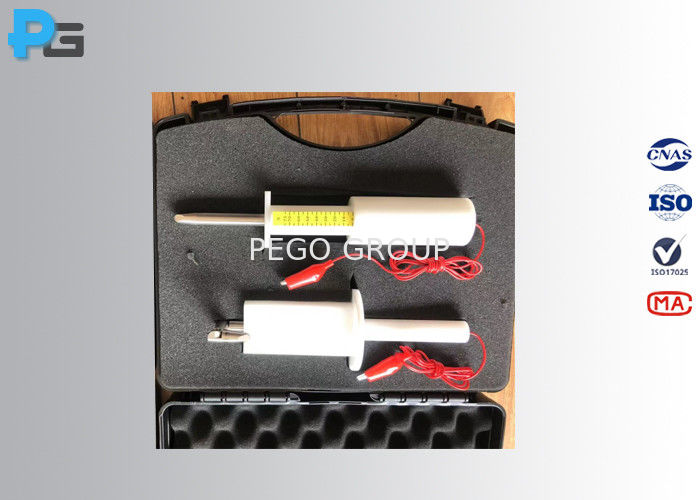

IEC61032 Standard Test Finger Probe and Unjointed Test Finger in Stock Can Be with Thruster
The standard test finger probe and unjointed test finger are designed according to IEC61032 standard. The standard test finger probe is intended to verify the basic protection against access to hazardous parts and also be used to verify the protection against access with finger. The Unjointed test finger probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers. Both of the finger probe can be customized with thruster and can pass the calibration test.
1. Introduction of Standard Test Finger Probe:
The Standard Test Finger Probe is design according to IEC61032 figure 2, meet the requirements of UL507, UL1278 figure 8 and EN60529 figure 2. The Standard Test Finger Probe with 50N force is for IP2X testing, it means for the protection of person’s finger from hazard parts.
2. Specification of Standard Test Finger Probe:
Diameter of dactylogryposis: | 12mm | Length of dactylogryposis: | 80mm |
Diameter of baffle: | 50mm | Length of baffle: | 100mm |
Thruster (optional) | 50N | ||
Material: Insulating material (baffle and handle), metal(dactylogryposis) |
3. Introduction of Unjointed Test Finger Probe:
The unjointed test finger probe is designed according to IEC61032 figure 7 and UL clauses.
4. Parameters of Unjointed Test Finger Probe:
diameter of test finger | 12mm |
Length of test finger | 80mm |
Diameter of baffle | 50mm |
Thickness of baffle: | 5mm |
Strength range | 10N, 20N, 30N, 40N, 50N |
Material | insulating material, metal |
