Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60598, IEC60335-1 Clause 25.15, GB7000, GB2486 | Application: | Power Cord Anchorage |
|---|---|---|---|
| Warranty: | 12 Months | Working Power: | 220V/50Hz |
| Power: | Electronic | Usage: | Auto Testing Machine |
| High Light: | electrical testing instruments,electric test meter |
||

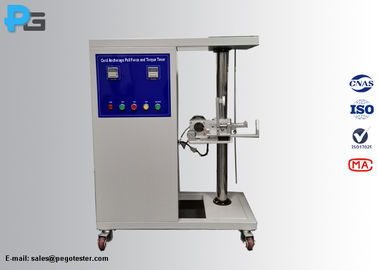

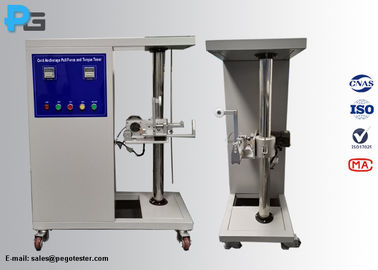

IEC60335-1 clause 25.15 Power Cord Anchorage Pull Force and Torque Tester
1. Description
The cord anchorage pull force and torque tester is designed according to the standards of IEC60598, IEC60335-1 clause 25.15, GB7000, GB2486 and etc., It is used to test tension and torque on the terminals of appliances provided with a supply cord and household appliances intended to be permanently connected to fixed wiring with flexible cords, it shall not be possible to push the cord into the appliance to such an extent that the cord or internal parts of the appliacne could be damaged.
The test method is to make a mark on the cord at a distance of approximately 20mm from the cord anchorage or other suitable point, and then apply steady pull force to cord for 25 times with a speed of 1 times/s. Then apply a torque as close as possible to the appliance for 1 minute. After the test, the displacement of the cord marking position shall not exceed 2 mm.
2. Parameter
| Working Power | AC 220V/50Hz |
| Pull force weight | 20N*2, 30N*2 (can realize 30N, 60N, 80N and 100N pull forces) |
| Torque weight | 5 (can realize 0.08Nm, 0.1Nm, 0.15Nm, 0.25Nm and 0.35Nm turque) |
| Test times | 0~9999 presetable, default 25 times |
| Test speed | 1 times/s |
| Torque time | 0.01s~99H99M |
Pull force and torque Table
| Mass of Appliance (KG) | Pull force (N) | Torque (N.m) |
| ≦1 | 30 | 0.1 |
| >1 and ≦4 | 60 | 0.25 |
| >4 | 100 | 0.35 |
3. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours
