| Standard: | IEC60335-2-2, IEC60335-2-24 | Usage: | For Testing Current-carry Hose Of Vacuum Cleaner |
|---|---|---|---|
| Rotation Speed: | 10r/min | Dimension: | 500mm*800mm*1850mm (W*L*H) |
| Working Voltage: | 220V/50Hz | Warranty: | 12 Months |
| High Light: | 220V Vacuum Cleaner Test Apparatus,10r/ Min Vacuum Cleaner Test Apparatus,Flexing Resistance Electrical Test Equipment |
||

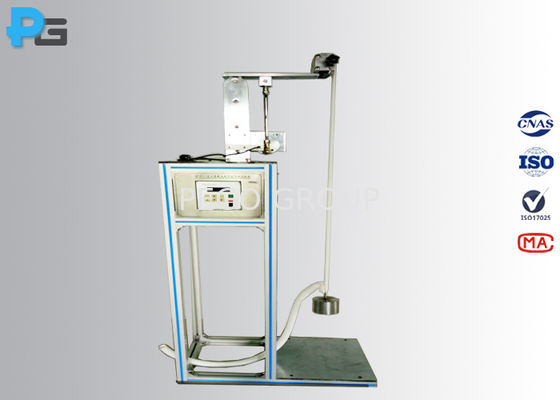

IEC60335-2-24 Vacuum Cleaner Test Apparatus for Testing Flexing Resistance of Curreny-Carrying Hose
1. Standards compliant: IEC60335-2-2 clause 21.103 and figure 102 and IEC60335-2-24 clause 21.103 and figure 102
2. Application: for testing the resistance to flexing of current-carry hose of vacuum cleaner
3. Introduction
Curreny-carrying hose flexing resistance test apparatus is designed according to IEC60335-2-2 clause 21.103 and figure 102 and IEC60335-2-24 clause 21.103 and figure 102, it is applied to test the current-carry hose of vacuum cleaners resistant to flexing.During the test, the end of the hose is attached to the pivoting arm of the test equipment, the distance between the pivot axis of the arm and the point where the hose enters the rigid part is 300mm±5mm. The arm can be raised from the horizontal position by an angle of 40°±1°, a mass of 5kg is suspended from the other end of the hose. The test is carried out for 2500 revolutions, and then turned the fixed end of the hose through 90°, and the test continued for a further 2500 revolutions, the test is repeated in each of the other two 90° position. If the hose ruptures before 10000 revolutions of the crank, the flexing is terminated. After the test, the hose shall withstand the electric strength test.
4. Parameters
| Control units | Button control+meter |
| Raise angle from horizontal | 40°±1° |
| Mass | 5kg |
| Inclined plane | the mass slides against an inclined plate so that the maximum deflection of the hose is 3° |
| Length of arm | 300mm±5mm |
| Rotation speed | 10r/min±1r/min |
| Number of tests | 2500 revolutions+2500 revolutions (1 revolution: 0°-45°-0°) |
| counter |
Setting value: 0-999999 (pre-settable) Real value:display the actual number of tests |
| Number of test station | 1 |
| Dimension | 500mm*800mm*1850mm (W*L*H) |
| Working power | 220V/50Hz |
5. Drawings
