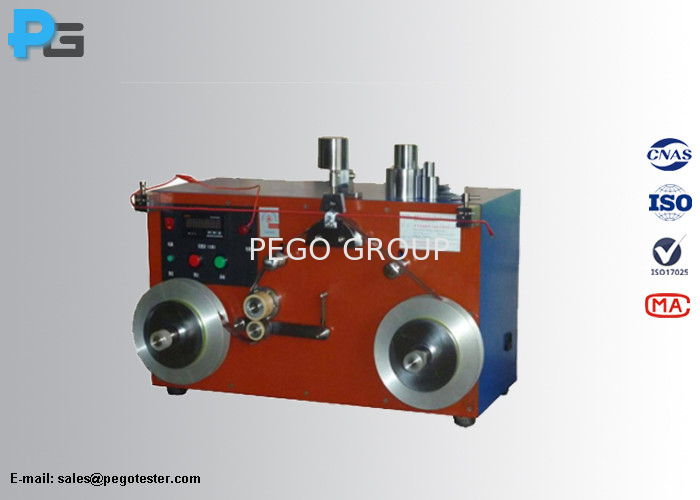

Sandpaper Abrasion Test Apparatus As Per ISO6722-1 For Testing Auto Cable

Sandpaper Abrasion Test Apparatus As Per ISO6722-1 For Testing Auto Cable
Sandpaper Abrasion Test Apparatus As Per ISO6722-1 For Testing Auto Cable

Large Image :  Sandpaper Abrasion Test Apparatus As Per ISO6722-1 For Testing Auto Cable

Product Details:
Place of Origin: China
Brand Name: PEGO Electronics
Certification: Third-Lab Calibration Certificate
Model Number: PG-SDA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: woodencase
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detailed Product Description
Standard Conform To: ISO6722-1 Clause 5.12.4.1 Figure 6 Application: For Testing Auto Cable Resistance To Sandpaper Abrasion
Sandpaper Applied To Test: 150J Garnet Sandpaper Tape Configured Mass: 50g, 100g, 200g, 500g,1500g
Allowable Dimameter Of Cable: No More Than 15mm Working Power: AC220V/50Hz Or Customized
High Light:

Sandpaper abrasion test apparatus

,

ISO6722-1 abrasion test apparatus

,

Auto Cable abrasion test apparatus

Apparatus for Sandpaper Abrasion Test as Per ISO6722-1 for Testing Auto Cable



1. Standard conforms to

ISO6722-1 clause 5.12.4.1 figure 6, GB/T25085, QC/T730, JASO D608, JASO D611, SAE J1127, SAE J1128 and JIS C3406 standard.



2. Application

The abrasion test is only applicable to cables with a conductor size≤6mm²,and it is intended to verify that the sistance of the cable insulation to abarsion mees the customer requirements. A test sample of 1m in length and remove 25mm of insulation from each end.



3. Working principle

Measure the “resistance to sandpaper abrasion” using 150J garnet sandpaper tape with 5mm to 10mm conductive strips perpendicular to the edge of the sandpaper spaced a maximum of every 75mm. Exert a force of (0.63±0.05)N on the test sample by the combination of the bracket, support rod and pivoting arm, the total  vertical force exerted on the test sample shall be the combination of the force exerted by the bracket, pivoting arm, support rod and additional mass. Mount the test sample taut, without stretching, in a horizontal position using an area of the sandpaper abrasion tape not previously used. Place the additional mass and bracket on top of the test sample. Draw the sandpaper abrasion tape under the test sample at a rate of (1500±75)mm/min and record the length of sandpaper abrasion tape necessary to expose the conductor. Move the test sample 50mm and rotate the test sample clockwise 90°. Repeat the procedure for a total of four reading. The mean of the readings shall determine the resistance to sandpaper abrasion.



4. Specification



Test station

1, each time test one sample

Test Sample size

Diameter 15mm, length 1m

Clamp

Left and right clamps, distance between clamp is 700mm

Sandpaper tape

150J garnet sandpaper tape, total length 5m, width 20mm

Speed of sandpaper tape

100mm/min and 1500mm/min selectable

Sandpaper tape abrasion travel

0-4000mm settable

Angle between sandpaper tape and sample

29±2°

Weight

Support rod + bracket=64.26g, equip with 50g, 100g, 200g, 500g,1500g weight (or can be customized)

Power supply

AC 220V, 0.5KW



5. Production Details

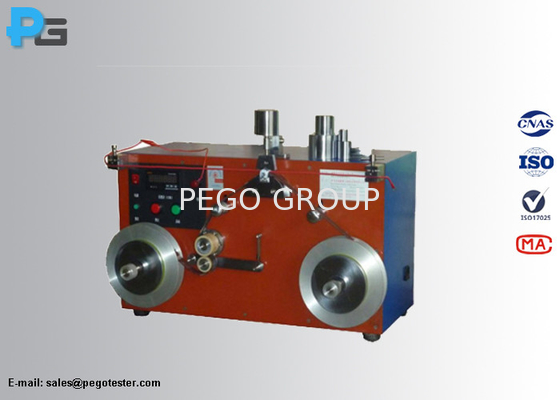

 Sandpaper Abrasion Test Apparatus As Per ISO6722-1 For Testing Auto Cable 0Sandpaper Abrasion Test Apparatus As Per ISO6722-1 For Testing Auto Cable 1
