ISO6722-1 Motor-Driven Scrape Abrasion Test Apparatus For Testing Auto Cables

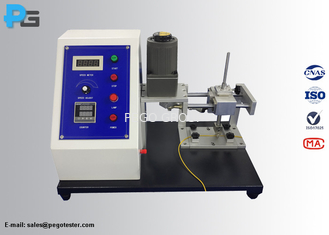

Large Image : ISO6722-1 Motor-Driven Scrape Abrasion Test Apparatus For Testing Auto Cables

Product Details:

Place of Origin:	China
Brand Name:	PEGO Electronics
Certification:	Third-Lab Calibration Certificate
Model Number:	PG-SCA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	carton
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Standard Conform To:

ISO6722-1, DIN72551-5, QC/T-730, JASO D611-94

Application:

For Testing The Auto Parts Resistance To Scrape Abrasion

Consisted By:

Controller (integrated With Counter), Abrasion Device

Working Power:

AC220V/50Hz

Highlight:

Motor-Driven Scrape Abrasion Test Apparatus

ISO6722-1 Scrape Abrasion Test Apparatus

Auto Cables Scrape Abrasion Test Apparatus

ISO6722-1 Motor-Driven Scrape Abrasion Test Apparatus for Testing Auto Cables

1. Introduction

The scrape abrasion test apparatus is designed to meet the test requirements of ISO6722-1 clause 5.12.4.2 and figure 7, DIN72551-5, QC/T-730, JASO D611-94 and VW60306 for testing the auto cables resistance to scrape abrasion.

The apparatus consisted a device to abrade the surface of the insulation of the test sample and a counter to record the numbers of cycles to failure. The needle abrades through the insulation and makes contact with the conductor, the apparatus will stop automatically. Scrape the sample at a certain speed until the sample cracks or breaks, and record the number of cycles to failure; or apply a certain vertical force to scrape the sample in a fixed cycles and then observe whether the sample has cracks or breakage.

2. Parameters

Diameter of needle	(0.45±0.01) mm1, (0.25±0.01)mm1
Type of needle	Spring wire material
Length of abrasion	(15.5±1)mm
Frequency	(50/60±5) cycles/min (adjustable)
Displacement of the needle	≤20mm
Drive mode	Motor-driven
Mass	1N, 4N, 7N
Groove depth	0.4mm, 0.8mm
Number of test station	1
Working power	AC220V/50Hz

3. Product Details

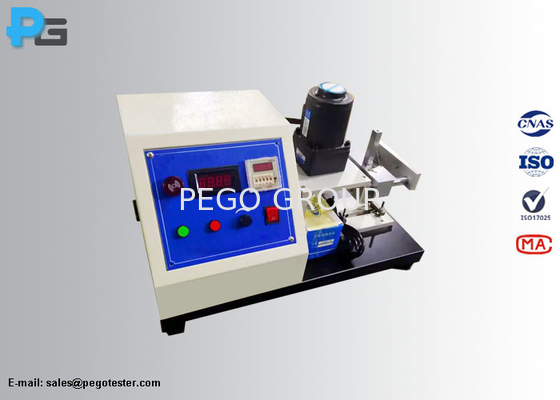

ISO6722-1 Motor-Driven Scrape Abrasion Test Apparatus For Testing Auto Cables 0

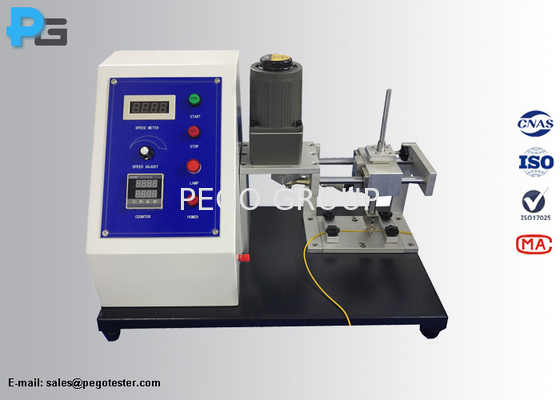

ISO6722-1 Motor-Driven Scrape Abrasion Test Apparatus For Testing Auto Cables 1
